AOW360A70 Specs and Replacement

Type Designator: AOW360A70

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 156 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 700 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 12 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 17 nS

Cossⓘ - Output Capacitance: 34 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.36 Ohm

Package: TO262

AOW360A70 substitution

- MOSFET ⓘ Cross-Reference Search



AOW360A70 datasheet

 ..1. Size:653K  aosemi
 aow360a70 aowf360a70.pdf pdf_icon

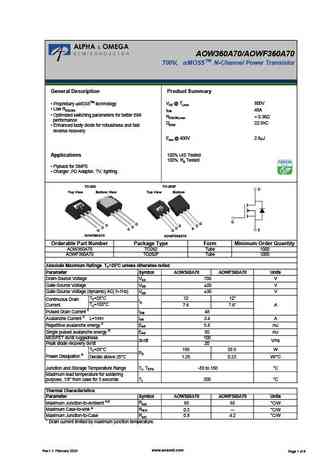

AOW360A70

AOW360A70/AOWF360A70 TM 700V, a MOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 800V Proprietary aMOS5TM technology Low RDS(ON) IDM 48A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒

 ..2. Size:653K  aosemi
 aow360a70.pdf pdf_icon

AOW360A70

AOW360A70/AOWF360A70 TM 700V, a MOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 800V Proprietary aMOS5TM technology Low RDS(ON) IDM 48A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒
