FXN0808C Datasheet. Specs and Replacement

Type Designator: FXN0808C  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 190 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 80 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 80 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 41 nS

Cossⓘ - Output Capacitance: 318 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.008 Ohm

Package: TO220

  📄📄 Copy

FXN0808C substitution

- MOSFET ⓘ Cross-Reference Search



FXN0808C datasheet

 ..1. Size:987K  cn fx-semi
 fxn0808c.pdf pdf_icon

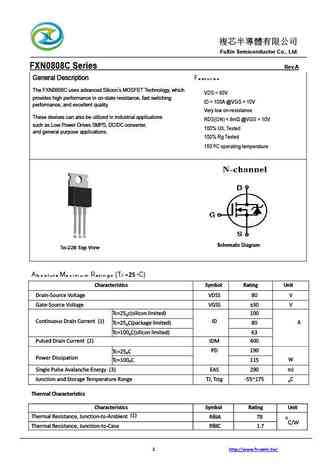

FXN0808C

FuXin Semiconductor Co., Ltd. FXN0808C Series Rev.A General Description Features The FXN0808C uses advanced Silicon s MOSFET Technology, which VDS = 80V provides high performance in on-state resistance, fast switching ID = 100A @VGS = 10V performance, and excellent quality. Very low on-resistance These devices can also be utilized in industria... See More ⇒

 9.1. Size:712K  cn fx-semi
 fxn08s65d.pdf pdf_icon

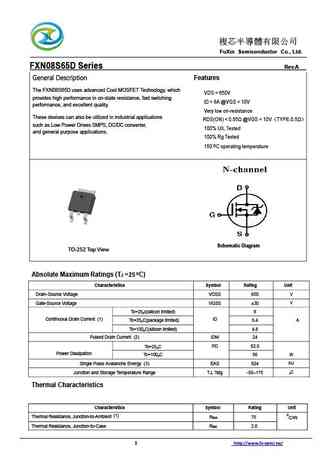

FXN0808C

FuXin Semiconductor Co., Ltd. FXN08S65D Series Rev.A General Description Features The FXN08S65D uses advanced Cool MOSFET Technology, which VDS = 650V provides high performance in on-state resistance, fast switching ID = 8A @VGS = 10V performance, and excellent quality. Very low on-resistance These devices can also be utilized in industrial applic... See More ⇒

Detailed specifications: FXN10N50F, FXN10N65F, FXN10N80F, FXN5N65D, FXN5N65F, FXN5N65FM, FXN65S55T, FXN07N10NS, 20N60, FXN08S65D, FXN09150C, FXN4607F, FXN4609F, FXN4611F, FXN4628F, FXN11N45F, FXN12N60FS
