DSP037N08N3 Datasheet. Specs and Replacement

Type Designator: DSP037N08N3  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 125 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 80 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 100 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 29 nS

Cossⓘ - Output Capacitance: 735 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0039 Ohm

Package: DFN5X6-8L

  📄📄 Copy

DSP037N08N3 substitution

- MOSFET ⓘ Cross-Reference Search



DSP037N08N3 datasheet

 ..1. Size:1447K  cn wxdh
 dsp037n08n3.pdf pdf_icon

DSP037N08N3

DSP037N08N3 80V/3.4m /100A N-MOSFET Features Key Parameters VDS Low on resistance 80V RDS(on)typ. Low reverse transfer capacitances 3.4m 100% single pulse avalanche energy test VTH 3V ID(Silicon limit ) 100% VDS test 133A ID(Package limit ) Pb-Free plating / Halogen-Free / RoHS compliant 100A Ciss@10V 3402pF Qgd 21nC Applications Power switching ap... See More ⇒

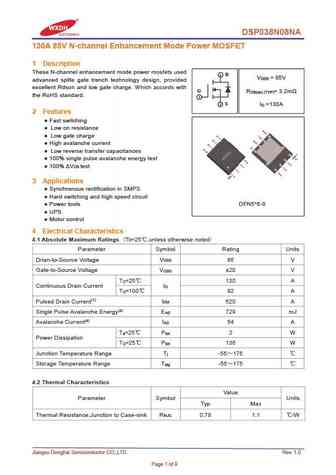

 9.1. Size:844K  cn wxdh
 dsp038n08na.pdf pdf_icon

DSP037N08N3

DSP038N08NA 130A 85V N-channel Enhancement Mode Power MOSFET 1 Description These N-channel enhancement mode power mosfets used 2 D V = 85V DSS advanced splite gate trench technology design, provided excellent Rdson and low gate charge. Which accords with G R = 3.2m DS(on) (TYP) the RoHS standard. 1 3 S I =130A D 2 Features Fast switching Low on resistance Low g... See More ⇒

 9.2. Size:896K  cn wxdh
 dsp032n08na.pdf pdf_icon

DSP037N08N3

DSP032N08NA 170A 85V N-channel Enhancement Mode Power MOSFET 1 Description These N-channel enhancement mode power mosfets used 2 D V = 85V DS advanced splite gate trench technology design, provided excellent Rdson and low gate charge. Which accords with G R = 2.4m DS(on) (TYP) the RoHS standard. 1 3 S I =170A D 2 Features AEC-Q101 qualified Fast switching Low o... See More ⇒
