JMPF4N65BJ Specs and Replacement
Type Designator: JMPF4N65BJ
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 27 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
|Id| ⓘ - Maximum Drain Current: 4 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 22 nS
Cossⓘ - Output Capacitance: 59 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 2.64 Ohm
Package: TO220F
JMPF4N65BJ substitution
- MOSFET ⓘ Cross-Reference Search
JMPF4N65BJ datasheet

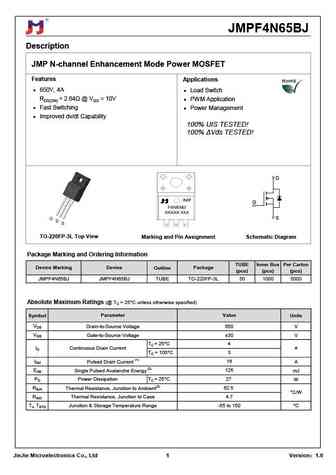

jmpf4n65bj.pdf
JMPF4N65BJ Description JMP N-channel Enhancement Mode Power MOSFET Features Applications 650V, 4A Load Switch RDS(ON) ... See More ⇒

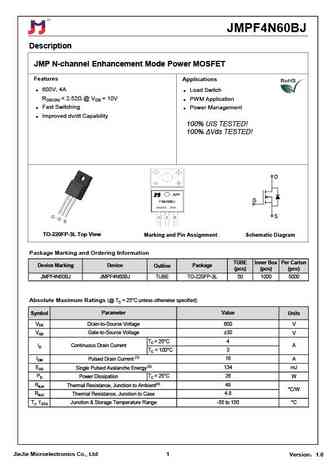

jmpf4n60bj.pdf
JMPF4N60BJ Description JMP N-channel Enhancement Mode Power MOSFET Features Applications 600V, 4A Load Switch RDS(ON) ... See More ⇒
