JMPF840BJ Datasheet and Replacement
Type Designator: JMPF840BJ
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pd ⓘ - Maximum Power Dissipation: 28 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 500 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
|Id| ⓘ - Maximum Drain Current: 9 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
tr ⓘ - Rise Time: 30 nS
Cossⓘ - Output Capacitance: 113 pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.97 Ohm
Package: TO220F
JMPF840BJ substitution
JMPF840BJ Datasheet (PDF)
jmpf840bj.pdf
JMPF840BJDescriptionJMP N-channel Enhancement Mode Power MOSFETFeaturesApplications 500V, 9A Load SwitchRDS(ON)

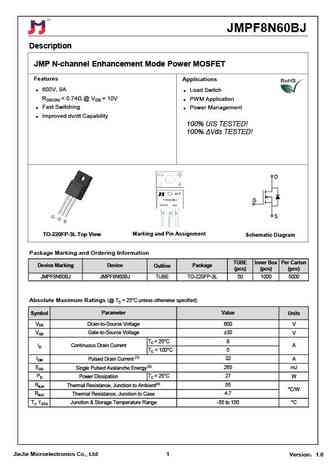

jmpf8n60bj.pdf
JMPF8N60BJDescriptionJMP N-channel Enhancement Mode Power MOSFETFeaturesApplications 600V, 8A Load SwitchRDS(ON)
