JMH70R430AK Datasheet. Specs and Replacement

Type Designator: JMH70R430AK  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 181 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 700 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 12 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 19.4 nS

Cossⓘ - Output Capacitance: 27 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.422 Ohm

Package: TO252

  📄📄 Copy

JMH70R430AK substitution

- MOSFET ⓘ Cross-Reference Search



JMH70R430AK datasheet

 ..1. Size:368K  jiejie micro

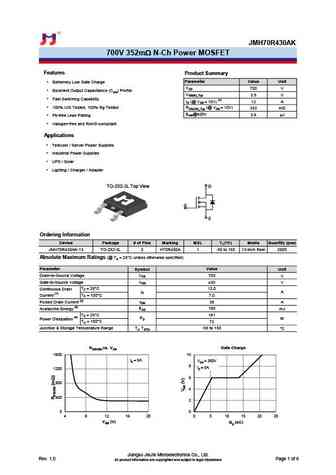

 jmh70r430ak.pdf pdf_icon

JMH70R430AK

JMH70R430AK 700V 352m N-Ch Power MOSFET Features Product Summary Parameter Value Unit Extremely Low Gate Charge VDS 700 V Excellent Output Capacitance (Coss) Profile VGS(th)_Typ 3.5 V Fast Switching Capability ID (@ VGS = 10V) (1) 12 A 100% UIS Tested, 100% Rg Tested RDS(ON)_Typ (@ VGS = 10V) 352 m Eoss@400V 3.6 J Pb-free Lead Plating Hal... See More ⇒

 4.1. Size:625K  jiejie micro

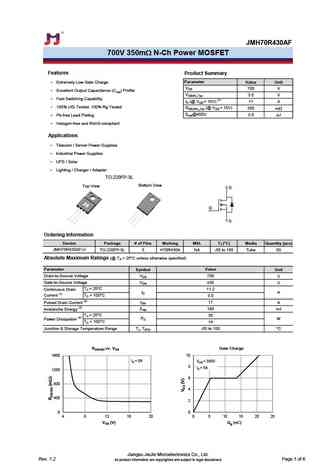

 jmh70r430af.pdf pdf_icon
