JMSH1565AUS Datasheet. Specs and Replacement

Type Designator: JMSH1565AUS  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 28 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 150 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 14 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 3.5 nS

Cossⓘ - Output Capacitance: 70 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.065 Ohm

Package: PDFN3X3-8L

  📄📄 Copy

JMSH1565AUS substitution

- MOSFET ⓘ Cross-Reference Search



JMSH1565AUS datasheet

 ..1. Size:323K  jiejie micro
 jmsh1565aus.pdf pdf_icon

JMSH1565AUS

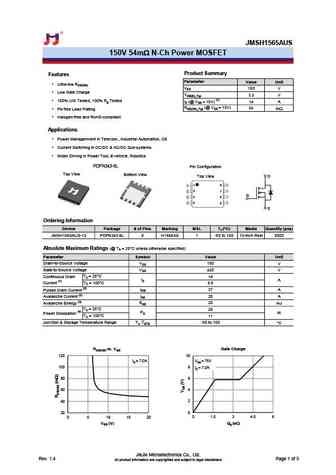

JMSH1565AUS 150V 54m N-Ch Power MOSFET Product Summary Features Parameter Value Unit Ultra-low RDS(ON) VDS 150 V Low Gate Charge VGS(th)_Typ 3.2 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 14 A RDS(ON)_Typ (@ VGS = 10V) 54 m Pb-free Lead Plating Halogen-free and RoHS-compliant Applications Power Managerment in Telecom., Industrial Autom... See More ⇒

 5.1. Size:310K  jiejie micro
 jmsh1565ags.pdf pdf_icon

JMSH1565AUS

JMSH1565AGS 150V 52m N-Ch Power MOSFET Product Summary Features Parameter Value Unit Ultra-low RDS(ON) VDS 150 V Low Gate Charge VGS(th)_Typ 3.2 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 18 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 52 m Halogen-free and RoHS-compliant Applications Power Managerment in Telecom., Industrial Automa... See More ⇒

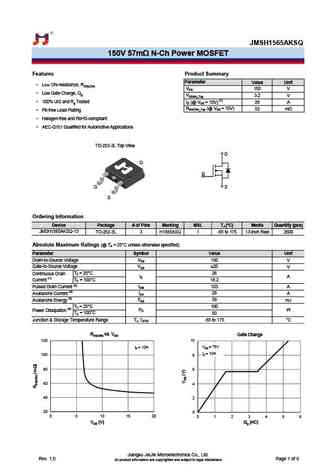

 5.2. Size:326K  jiejie micro
 jmsh1565aks.pdf pdf_icon

JMSH1565AUS

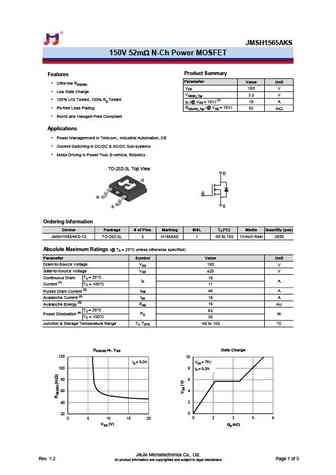

JMSH1565AKS 150V 52m N-Ch Power MOSFET Product Summary Features Parameter Value Unit Ultra-low RDS(ON) VDS 150 V Low Gate Charge VGS(th)_Typ 3.2 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 18 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 52 m RoHS and Halogen-Free Compliant Applications Power Managerment in Telecom., Industrial Aut... See More ⇒

 5.3. Size:352K  jiejie micro
 jmsh1565aps.pdf pdf_icon

JMSH1565AUS

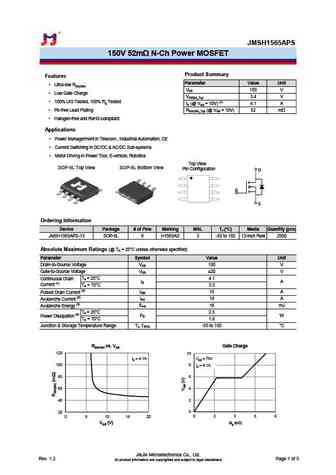

JMSH1565APS 150V 52m N-Ch Power MOSFET Product Summary Features Parameter Value Unit Ultra-low RDS(ON) VDS 150 V Low Gate Charge VGS(th)_Typ 3.4 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 4.1 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 52 m Halogen-free and RoHS-compliant Applications Power Managerment in Telecom., Industrial Au... See More ⇒

SHOW MORE
