JBL111P Datasheet. Specs and Replacement

Type Designator: JBL111P  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 357 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 110 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 256 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 73 nS

Cossⓘ - Output Capacitance: 1591 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0022 Ohm

Package: TOLL

  📄📄 Copy

JBL111P substitution

- MOSFET ⓘ Cross-Reference Search

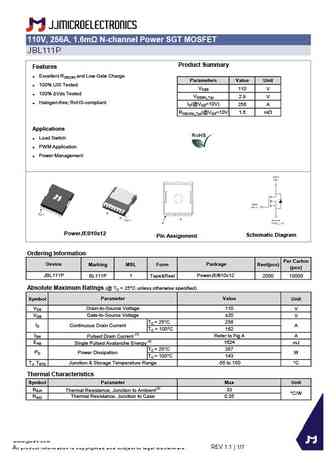

JBL111P datasheet

 ..1. Size:1257K  jiejie micro
 jbl111p.pdf pdf_icon

JBL111P

110V, 256A, 1.6m N-channel Power SGT MOSFET JBL111P Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 110 V 100% Vds Tested VGS(th)_Typ 2.9 V Halogen-free; RoHS-compliant ID(@VGS=10V) 256 A RDS(ON)_Typ(@VGS=10V 1.6 mW Applications Load Switch PWM Application Power Management PowerJE 10x12 ... See More ⇒

 9.1. Size:1272K  jiejie micro
 jbl112t.pdf pdf_icon

JBL111P

110V, 244A, 1.9m N-channel Power SGT MOSFET JBL112T Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 110 V 100% Vds Tested VGS(th)_Typ 3.0 V Halogen-free; RoHS-compliant ID(@VGS=10V) 244 A RDS(ON)_Typ(@VGS=10V 1.9 mW Applications Load Switch PWM Application Power Management PowerJE 10x12 ... See More ⇒

 9.2. Size:1259K  jiejie micro
 jbl113p.pdf pdf_icon

JBL111P

110V, 196A, 5.3m N-channel Power SGT MOSFET JBL113P Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 110 V 100% Vds Tested VGS(th)_Typ 2.8 V Halogen-free; RoHS-compliant ID(@VGS=10V) 196 A RDS(ON)_Typ(@VGS=10V 3.3 mW Applications RDS(ON)_Typ(@VGS=6V 5.3 mW Load Switch PWM Application Power ... See More ⇒
