   Type Designator: JMSH1102YC
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel

Absolute Maximum Ratings


   Pd ⓘ - Maximum Power Dissipation: 137 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 110 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 126 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics


   tr ⓘ - Rise Time: 46 nS
   Cossⓘ - Output Capacitance: 947 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0042 Ohm
   Package: TO220


 JMSH1102YC substitution

   - MOSFET ⓘ Cross-Reference Search



JMSH1102YC PDF Specs

 ..1. Size:1276K  jiejie micro
 jmsh1102yc.pdf pdf_icon

JMSH1102YC

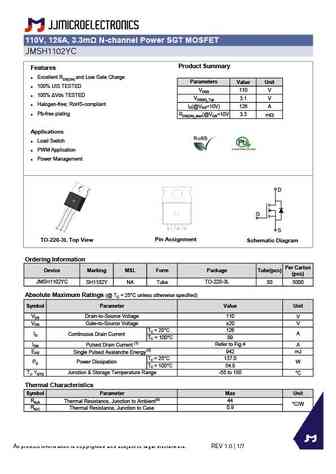

110V, 126A, 3.3m N-channel Power SGT MOSFET JMSH1102YC Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS TESTED VDSS 110 V 100% Vds TESTED VGS(th)_Typ 3.1 V Halogen-free; RoHS-compliant ID(@VGS=10V) 126 A Pb-free plating RDS(ON)_Max(@VGS=10V 3.3 mW Applications Load Switch PWM Application Power Mana... See More ⇒

 5.1. Size:1250K  jiejie micro
 jmsh1102ye.pdf pdf_icon

JMSH1102YC

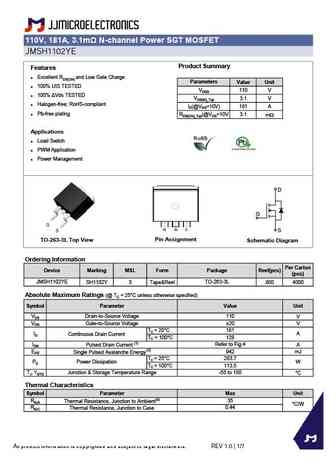

110V, 181A, 3.1m N-channel Power SGT MOSFET JMSH1102YE Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS TESTED VDSS 110 V 100% Vds TESTED VGS(th)_Typ 3.1 V Halogen-free; RoHS-compliant ID(@VGS=10V) 181 A Pb-free plating RDS(ON)_Typ(@VGS=10V 3.1 mW Applications Load Switch PWM Application Power Mana... See More ⇒

 6.1. Size:1262K  jiejie micro
 jmsh1102qc.pdf pdf_icon

JMSH1102YC

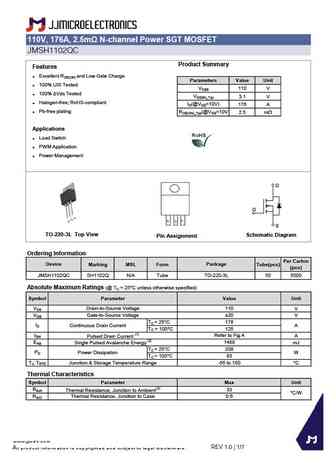

110V, 176A, 2.5m N-channel Power SGT MOSFET JMSH1102QC Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 110 V 100% Vds Tested VGS(th)_Typ 3.1 V Halogen-free; RoHS-compliant ID(@VGS=10V) 176 A Pb-free plating RDS(ON)_Typ(@VGS=10V 2.5 mW Applications Load Switch PWM Application Power Man... See More ⇒

 6.2. Size:1236K  jiejie micro
 jmsh1102qe.pdf pdf_icon

JMSH1102YC

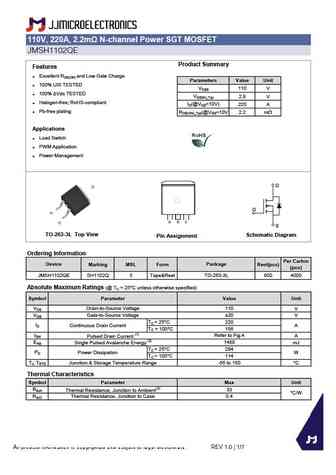

110V, 220A, 2.2m N-channel Power SGT MOSFET JMSH1102QE Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS TESTED VDSS 110 V 100% Vds TESTED VGS(th)_Typ 2.9 V Halogen-free; RoHS-compliant ID(@VGS=10V) 220 A Pb-free plating RDS(ON)_Typ(@VGS=10V 2.2 mW Applications Load Switch PWM Application Power Man... See More ⇒
