All MOSFET. JMSH1103PE Datasheet



JMSH1103PE Datasheet and Replacement


   Type Designator: JMSH1103PE
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 228.3 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 110 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 167 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 41 nS
   Cossⓘ - Output Capacitance: 922 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0041 Ohm
   Package: TO263


 JMSH1103PE substitution

   - MOSFET ⓘ Cross-Reference Search



JMSH1103PE Datasheet (PDF)

 ..1. Size:1252K  jiejie micro
 jmsh1103pe.pdf pdf_icon

JMSH1103PE

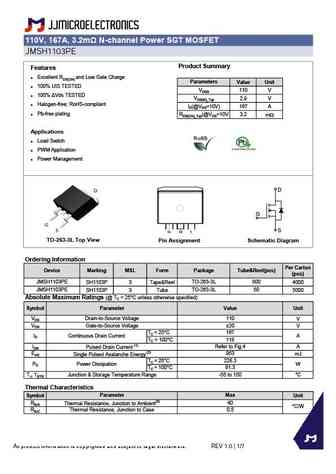

110V, 167A, 3.2m N-channel Power SGT MOSFETJMSH1103PEProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParameters Value Unit 100% UIS TESTEDVDSS 110 V 100% Vds TESTEDVGS(th)_Typ 2.9 V Halogen-free; RoHS-compliantID(@VGS=10V) 167 A Pb-free platingRDS(ON)_Typ(@VGS=10V 3.2 mWApplications Load Switch PWM Application Power Mana

 6.1. Size:1233K  jiejie micro
 jmsh1103te.pdf pdf_icon

JMSH1103PE

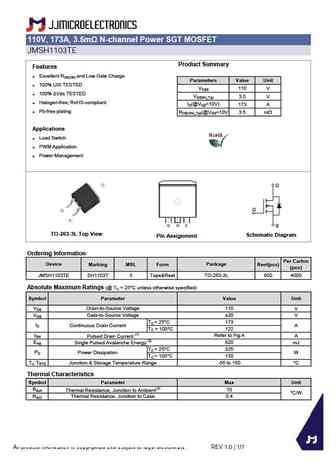

110V, 173A, 3.5m N-channel Power SGT MOSFETJMSH1103TEProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TESTEDVDSS 110 V 100% Vds TESTEDVGS(th)_Typ 3.0 V Halogen-free; RoHS-compliantID(@VGS=10V) 173 A Pb-free platingRDS(ON)_Typ(@VGS=10V 3.5 mWApplications Load Switch PWM Application Power Man

 6.2. Size:1270K  jiejie micro
 jmsh1103tc.pdf pdf_icon

JMSH1103PE

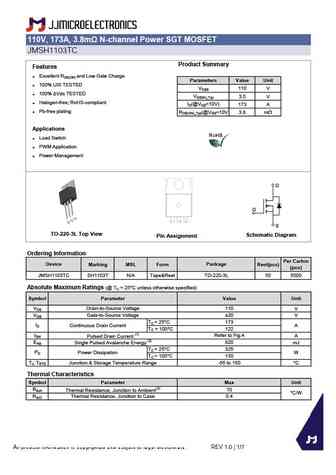

110V, 173A, 3.8m N-channel Power SGT MOSFETJMSH1103TCProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TESTEDVDSS 110 V 100% Vds TESTEDVGS(th)_Typ 3.0 V Halogen-free; RoHS-compliantID(@VGS=10V) 173 A Pb-free platingRDS(ON)_Typ(@VGS=10V 3.8 mWApplications Load Switch PWM Application Power Man

 7.1. Size:1262K  jiejie micro
 jmsh1102qc.pdf pdf_icon

JMSH1103PE

110V, 176A, 2.5m N-channel Power SGT MOSFETJMSH1102QCProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 110 V 100% Vds TestedVGS(th)_Typ 3.1 V Halogen-free; RoHS-compliantID(@VGS=10V) 176 A Pb-free platingRDS(ON)_Typ(@VGS=10V 2.5 mWApplications Load Switch PWM Application Power Man
