   Type Designator: JMSH1202PTL
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel

Absolute Maximum Ratings


   Pd ⓘ - Maximum Power Dissipation: 500 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 120 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 300 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics


   tr ⓘ - Rise Time: 43 nS
   Cossⓘ - Output Capacitance: 1152 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0028 Ohm
   Package: TOLL


 JMSH1202PTL substitution

   - MOSFET ⓘ Cross-Reference Search



JMSH1202PTL PDF Specs

 ..1. Size:1261K  jiejie micro
 jmsh1202ptl.pdf pdf_icon

JMSH1202PTL

120V, 300A, 2.1m N-channel Power SGT MOSFET JMSH1202PTL Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 120 V 100% Vds Tested VGS(th)_Typ 2.7 V Halogen-free; RoHS-compliant ID(@VGS=10V) 300 A RDS(ON)_Typ(@VGS=10V 2.1 mW Applications Load Switch PWM Application Power Management PowerJE 10... See More ⇒

 7.1. Size:301K  jiejie micro
 jmsh1207ag.pdf pdf_icon

JMSH1202PTL

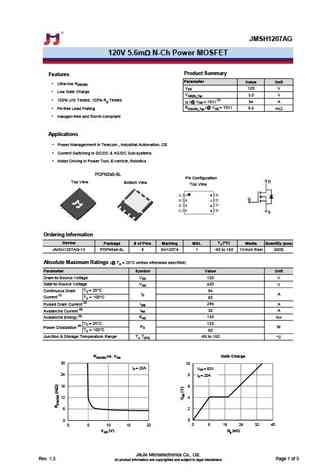

JMSH1207AG 120V 5.6m N-Ch Power MOSFET Product Summary Features Parameter Value Unit Ultra-low RDS(ON) VDS 120 V Low Gate Charge VGS(th)_Typ 3.0 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 94 A RDS(ON)_Typ (@ VGS = 10V) Pb-free Lead Plating 5.6 m Halogen-free and RoHS-compliant Applications Power Managerment in Telecom., Industrial A... See More ⇒

 7.2. Size:340K  jiejie micro
 jmsh1207ac jmsh1207ae.pdf pdf_icon

JMSH1202PTL

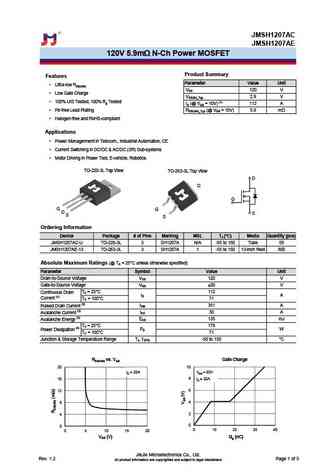

JMSH1207AC JMSH1207AE 120V 5.9m N-Ch Power MOSFET Product Summary Features Parameter Value Unit Ultra-low RDS(ON) VDS 120 V Low Gate Charge VGS(th)_Typ 2.9 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 112 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 5.9 m Halogen-free and RoHS-compliant Applications Power Managerment in Telecom., ... See More ⇒

 7.3. Size:1291K  jiejie micro
 jmsh1204pc.pdf pdf_icon

JMSH1202PTL

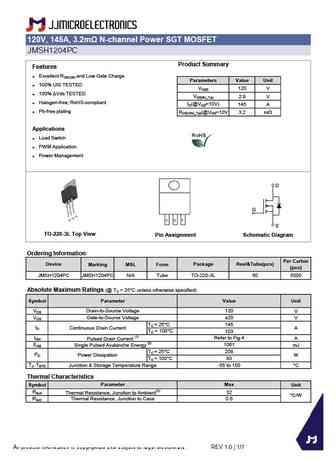

120V, 145A, 3.2m N-channel Power SGT MOSFET JMSH1204PC Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS TESTED VDSS 120 V 100% Vds TESTED VGS(th)_Typ 2.9 V Halogen-free; RoHS-compliant ID(@VGS=10V) 145 A Pb-free plating RDS(ON)_Typ(@VGS=10V 3.2 mW Applications Load Switch PWM Application Power Man... See More ⇒
