JMPC8N60BJ Datasheet. Specs and Replacement

Type Designator: JMPC8N60BJ  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 125 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 600 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 8 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 23 nS

Cossⓘ - Output Capacitance: 105 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 1.29 Ohm

Package: TO220

JMPC8N60BJ substitution

- MOSFET ⓘ Cross-Reference Search



JMPC8N60BJ datasheet

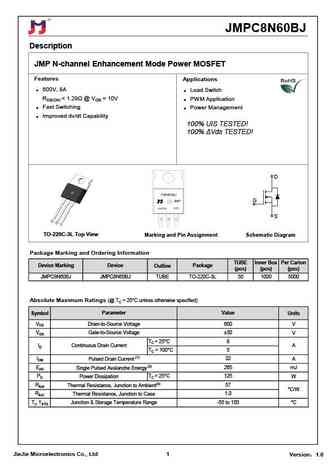

 ..1. Size:1042K  jiejie micro
 jmpc8n60bj.pdf pdf_icon

JMPC8N60BJ

JMPC8N60BJ Description JMP N-channel Enhancement Mode Power MOSFET Features Applications 600V, 8A Load Switch RDS(ON) ... See More ⇒

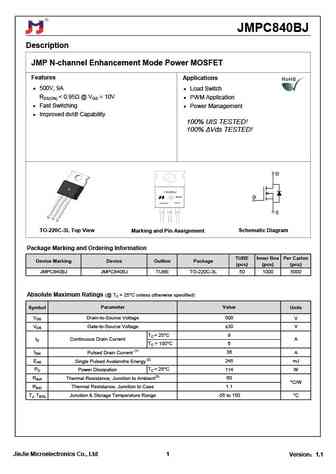

 9.1. Size:1045K  jiejie micro
