All MOSFET. JMTV210P02A Datasheet



JMTV210P02A Datasheet and Replacement


   Type Designator: JMTV210P02A
   Type of Transistor: MOSFET
   Type of Control Channel: P -Channel
   Pd ⓘ - Maximum Power Dissipation: 2.6 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 20 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 12 V
   |Id| ⓘ - Maximum Drain Current: 15 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 35 nS
   Cossⓘ - Output Capacitance: 213 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0151 Ohm
   Package: DFN2020-6L


 JMTV210P02A substitution

   - MOSFET ⓘ Cross-Reference Search

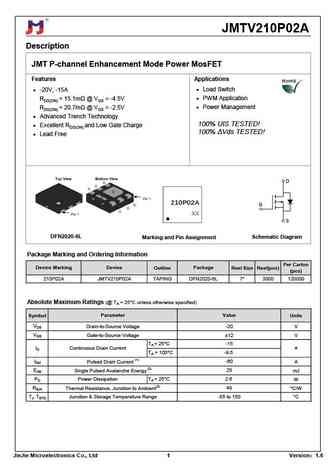

JMTV210P02A Datasheet (PDF)

 ..1. Size:483K  jiejie micro
 jmtv210p02a.pdf pdf_icon

JMTV210P02A

JMTV210P02ADescriptionJMT P-channel Enhancement Mode Power MosFETFeatures Applications -20V, -15A Load SwitchRDS(ON)

 9.1. Size:1017K  jiejie micro

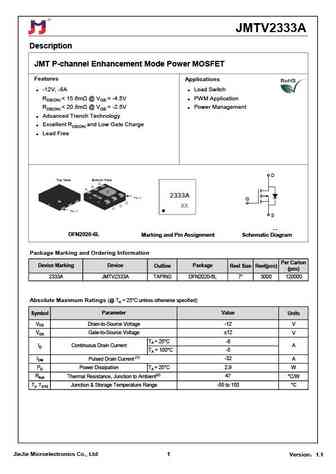

 jmtv2333a.pdf pdf_icon

JMTV210P02A

JMTV2333ADescriptionJMT P-channel Enhancement Mode Power MOSFETFeatures Applications -12V, -8A Load SwitchRDS(ON)

 9.2. Size:398K  jiejie micro

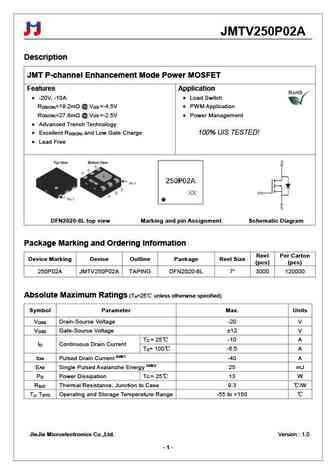

 jmtv250p02a.pdf pdf_icon

JMTV210P02A

JMTV250P02ADescriptionJMT P-channel Enhancement Mode Power MOSFETFeatures Application -20V, -10A Load SwitchR

 9.3. Size:686K  jiejie micro

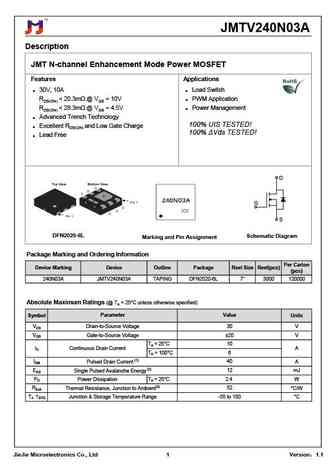

 jmtv240n03a.pdf pdf_icon

JMTV210P02A

JMTV240N03ADescriptionJMT N-channel Enhancement Mode Power MOSFETFeatures Applications 30V, 10A Load SwitchRDS(ON)
