JMTC80N06A Datasheet. Specs and Replacement

Type Designator: JMTC80N06A

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 108 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 80 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 7 nS

Cossⓘ - Output Capacitance: 286 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.007 Ohm

Package: TO220

JMTC80N06A substitution

- MOSFET ⓘ Cross-Reference Search



JMTC80N06A datasheet

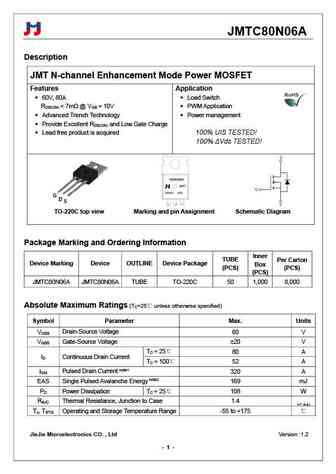

 ..1. Size:578K  jiejie micro
 jmtc80n06a.pdf pdf_icon

JMTC80N06A

JMTC80N06A Description JMT N-channel Enhancement Mode Power MOSFET Features Application 60V, 80A Load Switch R ... See More ⇒
