JMTL400N04A Datasheet. Specs and Replacement

Type Designator: JMTL400N04A

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1.1 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 3.9 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 2 nS

Cossⓘ - Output Capacitance: 42 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.039 Ohm

Package: SOT23

JMTL400N04A substitution

- MOSFET ⓘ Cross-Reference Search



JMTL400N04A datasheet

 ..1. Size:1306K  jiejie micro
 jmtl400n04a.pdf pdf_icon

JMTL400N04A

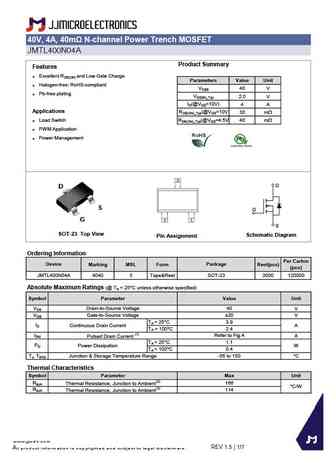

40V, 4A, 40m N-channel Power Trench MOSFET JMTL400N04A Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit Halogen-free; RoHS-compliant VDSS 40 V Pb-free plating VGS(th)_Typ 2.0 V ID(@VGS=10V) 4 A Applications RDS(ON)_Typ(@VGS=10V 30 mW Load Switch RDS(ON)_Typ(@VGS=4.5V 40 mW PWM Application Power Management D G S S... See More ⇒
