JMTLA3134K Datasheet. Specs and Replacement

Type Designator: JMTLA3134K

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 0.23 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 10 V

|Id| ⓘ - Maximum Drain Current: 0.9 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 19 nS

Cossⓘ - Output Capacitance: 22 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.24 Ohm

Package: SOT323

JMTLA3134K substitution

- MOSFET ⓘ Cross-Reference Search

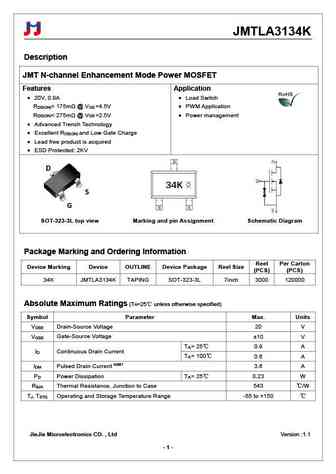

JMTLA3134K datasheet

 ..1. Size:317K  jiejie micro
 jmtla3134k.pdf pdf_icon

JMTLA3134K

JMTLA3134K Description JMT N-channel Enhancement Mode Power MOSFET Features Application 20V, 0.9A Load Switch R ... See More ⇒

 9.1. Size:305K  jiejie micro
 jmtla2n7002ks.pdf pdf_icon

JMTLA3134K

JMTLA2N7002KS Description JMT N-channel MOSFET Features Application V =60V, I =0.2A Battery Operated Systems DS D R ... See More ⇒
