All MOSFET. JMTK3003A Datasheet



JMTK3003A Datasheet and Replacement


   Type Designator: JMTK3003A
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 72.7 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 30 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 150 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 19 nS
   Cossⓘ - Output Capacitance: 494 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0034 Ohm
   Package: TO252


 JMTK3003A substitution

   - MOSFET ⓘ Cross-Reference Search



JMTK3003A Datasheet (PDF)

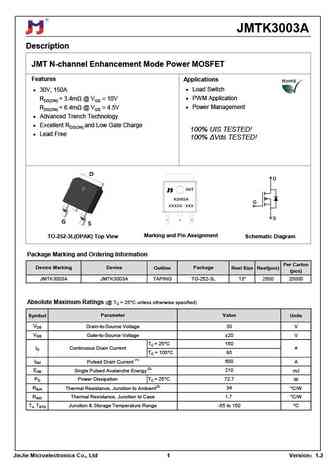

 ..1. Size:968K  jiejie micro
 jmtk3003a.pdf pdf_icon

JMTK3003A

JMTK3003ADescriptionJMT N-channel Enhancement Mode Power MOSFETFeaturesApplications 30V, 150A Load SwitchRDS(ON)

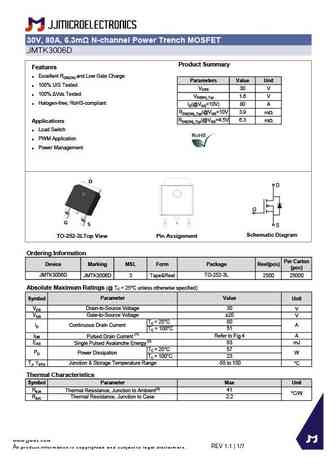

 7.1. Size:1287K  jiejie micro
 jmtk3006d.pdf pdf_icon

JMTK3003A

30V, 80A, 6.3m N-channel Power Trench MOSFETJMTK3006DProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParameters Value Unit 100% UIS TestedVDSS 30 V 100% Vds TestedVGS(th)_Typ 1.6 V Halogen-free; RoHS-compliantID(@VGS=10V) 80 ARDS(ON)_Typ(@VGS=10V 3.9 mWRDS(ON)_Typ(@VGS=4.5V 6.3 mWApplications Load Switch PWM Application Pow

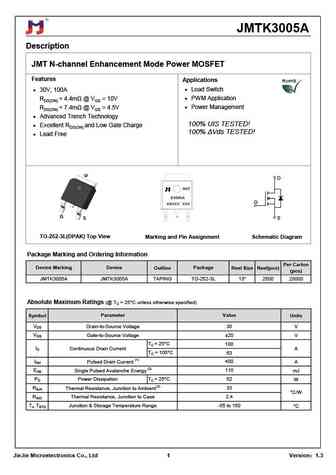

 7.2. Size:1076K  jiejie micro
 jmtk3005a.pdf pdf_icon

JMTK3003A

JMTK3005ADescriptionJMT N-channel Enhancement Mode Power MOSFETFeaturesApplications Load Switch 30V, 100A PWM ApplicationRDS(ON)

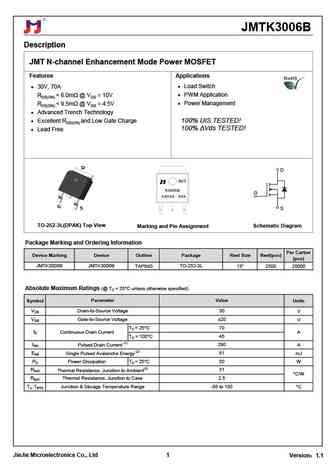

 7.3. Size:884K  jiejie micro
 jmtk3006b.pdf pdf_icon

JMTK3003A

JMTK3006BDescriptionJMT N-channel Enhancement Mode Power MOSFETFeatures Applications 30V, 70A Load SwitchRDS(ON)
