JMTM3415KL Datasheet. Specs and Replacement

Type Designator: JMTM3415KL

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1.1 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 10 V

|Id| ⓘ - Maximum Drain Current: 4.1 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 35 nS

Cossⓘ - Output Capacitance: 98 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.039 Ohm

Package: SOT23-6L

JMTM3415KL substitution

- MOSFET ⓘ Cross-Reference Search



JMTM3415KL datasheet

 ..1. Size:391K  jiejie micro
 jmtm3415kl.pdf pdf_icon

JMTM3415KL

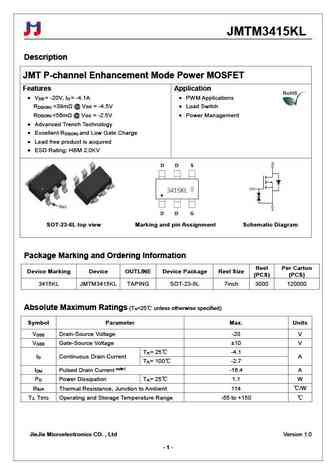

JMTM3415KL Description JMT P-channel Enhancement Mode Power MOSFET Features Application V = -20V, I = -4.1A PWM Applications DS D R ... See More ⇒

 8.1. Size:331K  jiejie micro
 jmtm3406d.pdf pdf_icon

JMTM3415KL

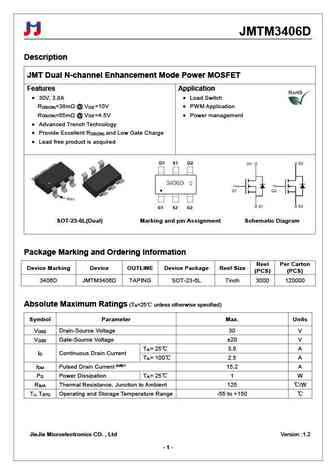

JMTM3406D Description JMT Dual N-channel Enhancement Mode Power MOSFET Features Application 30V, 3.8A Load Switch R ... See More ⇒

 9.1. Size:715K  jiejie micro
 jmtm300n03d.pdf pdf_icon

JMTM3415KL

JMTM300N03D Description JMT Dual N-channel Enhancement Mode Power MosFET Features Applications 30V, 4.8A Load Switch RDS(ON) ... See More ⇒

 9.2. Size:1279K  jiejie micro
 jmtm330n06a.pdf pdf_icon

JMTM3415KL

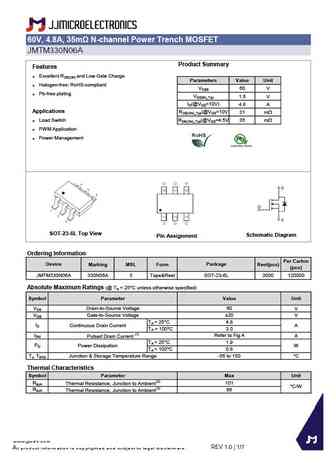

60V, 4.8A, 35m N-channel Power Trench MOSFET JMTM330N06A Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit Halogen-free; RoHS-compliant VDSS 60 V Pb-free plating VGS(th)_Typ 1.6 V ID(@VGS=10V) 4.8 A Applications RDS(ON)_Typ(@VGS=10V 31 mW Load Switch RDS(ON)_Typ(@VGS=4.5V 35 mW PWM Application Power Management SOT-23-... See More ⇒
