JMTP080P03A Spec and Replacement
Type Designator: JMTP080P03A
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Pd ⓘ - Maximum Power Dissipation: 1.7 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 15 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
tr ⓘ - Rise Time: 6 nS
Cossⓘ - Output Capacitance: 471 pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.009 Ohm
Package: SOP8
JMTP080P03A Transistor Equivalent Substitute - MOSFET Cross-Reference Search
JMTP080P03A Specs

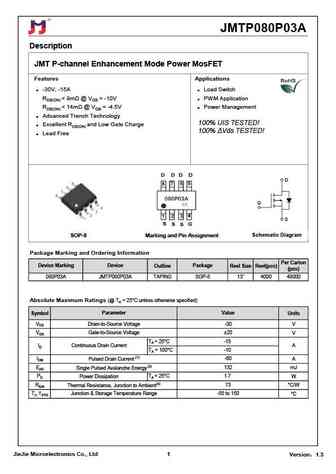

jmtp080p03a.pdf
JMTP080P03A Description JMT P-channel Enhancement Mode Power MosFET Features Applications -30V, -15A Load Switch RDS(ON) ... See More ⇒

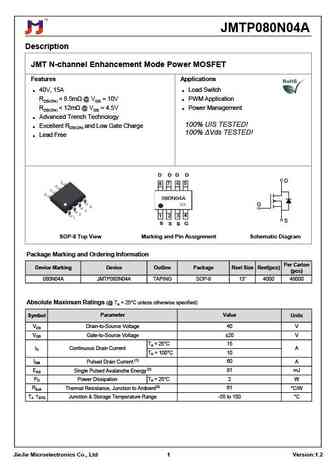

jmtp080n04a.pdf
JMTP080N04A Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 40V, 15A Load Switch RDS(ON) ... See More ⇒

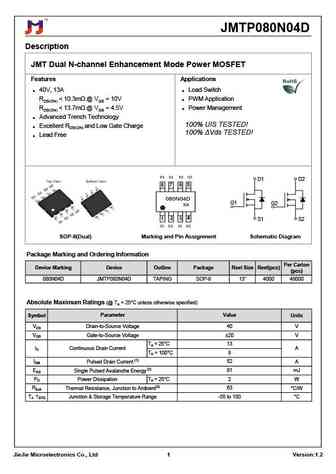

jmtp080n04d.pdf
JMTP080N04D Description JMT Dual N-channel Enhancement Mode Power MOSFET Features Applications 40V, 13A Load Switch RDS(ON) ... See More ⇒

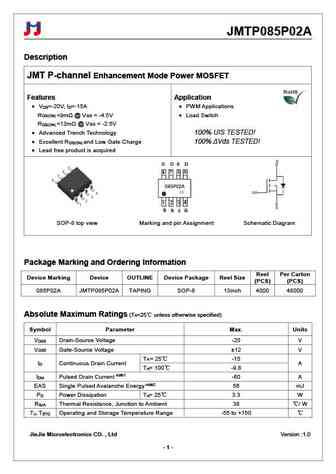

jmtp085p02a.pdf
JMTP085P02A Description JMT P-channel Enhancement Mode Power MOSFET Features Application V =-20V, I =-15A PWM Applications DS D R ... See More ⇒
