JMTG170N06A PDF and Equivalents Search



JMTG170N06A Specs and Replacement


   Type Designator: JMTG170N06A
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel

Absolute Maximum Ratings


   Pd ⓘ - Maximum Power Dissipation: 113 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 40 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics


   tr ⓘ - Rise Time: 28 nS
   Cossⓘ - Output Capacitance: 122 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.015 Ohm
   Package: PDFN5X6-8L


 JMTG170N06A substitution

   - MOSFET ⓘ Cross-Reference Search

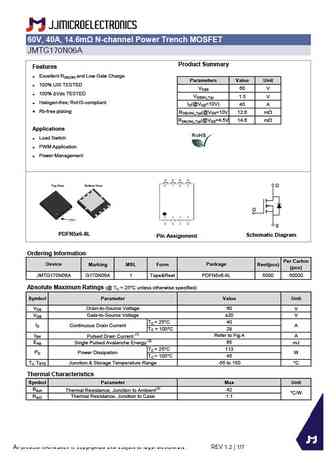

JMTG170N06A datasheet

 ..1. Size:1250K  jiejie micro
 jmtg170n06a.pdf pdf_icon

JMTG170N06A

... See More ⇒

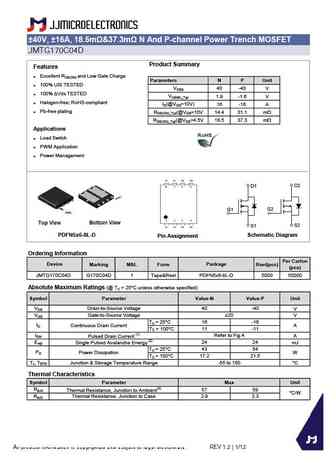

 7.1. Size:1516K  jiejie micro
 jmtg170c04d.pdf pdf_icon

JMTG170N06A

40V, 16A, 18.5m &37.3m N And P-channel Power Trench MOSFET JMTG170C04D Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters N P Unit 100% UIS TESTED VDSS 40 -40 V 100% Vds TESTED VGS(th)_Typ 1.9 -1.6 V Halogen-free; RoHS-compliant ID(@VGS=10V) 16 -16 A Pb-free plating RDS(ON)_Typ(@VGS=10V 14.4 31.1 mW RDS(ON)_Typ(@VGS=4.5V 18.5 37... See More ⇒

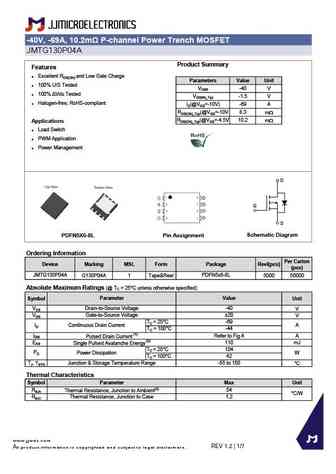

 9.1. Size:1352K  jiejie micro
 jmtg130p04a.pdf pdf_icon

JMTG170N06A

-40V, -69A, 10.2m P-channel Power Trench MOSFET JMTG130P04A Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS -40 V 100% Vds Tested VGS(th)_Typ -1.5 V Halogen-free; RoHS-compliant ID(@VGS=-10V) -69 A RDS(ON)_Typ(@VGS=-10V 8.3 mW RDS(ON)_Typ(@VGS=-4.5V 10.2 mW Applications Load Switch PWM Applicat... See More ⇒

 9.2. Size:628K  jiejie micro
 jmtg100n03a.pdf pdf_icon

JMTG170N06A

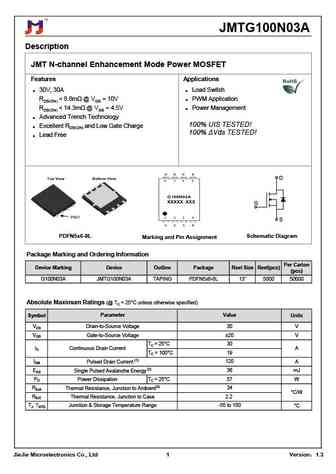

JMTG100N03A Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 30V, 30A Load Switch RDS(ON) ... See More ⇒
