JMTG4004A Datasheet and Replacement
Type Designator: JMTG4004A
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pd ⓘ - Maximum Power Dissipation: 104 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 123 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
tr ⓘ - Rise Time: 62 nS
Cossⓘ - Output Capacitance: 355 pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0035 Ohm
Package: PDFN5X6-8L
JMTG4004A substitution
JMTG4004A Datasheet (PDF)
jmtg4004a.pdf

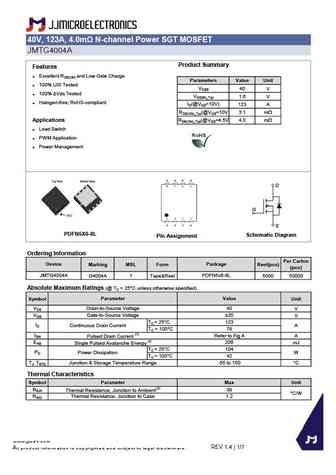

40V, 123A, 4.0m N-channel Power SGT MOSFETJMTG4004AProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.6 V Halogen-free; RoHS-compliantID(@VGS=10V) 123 ARDS(ON)_Typ(@VGS=10V 3.1 mWApplications RDS(ON)_Typ(@VGS=4.5V 4.0 mW Load Switch PWM Application Powe
