JVL102T MOSFET Datasheet: N-Ch, 100V, 263A. Full specification with pinout and replacement list

JVL102T Specs and Replacement

Type Designator: JVL102T

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 321 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 263 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 43 nS

Cossⓘ - Output Capacitance: 1559 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0023 Ohm

Package: TOLL

JVL102T substitution

- MOSFET ⓘ Cross-Reference Search

JVL102T datasheet

..1. Size:604K jiejie micro
jvl102t.pdf pdf_icon

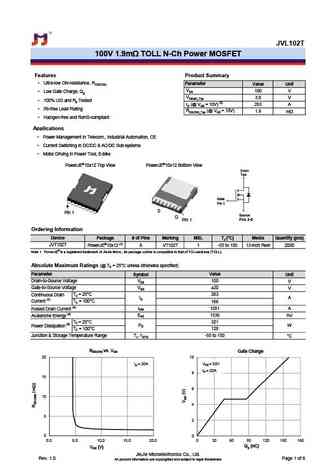

JVL102T 100V 1.9mW TOLL N-Ch Power MOSFET Product Summary Features Ultra-low ON-resistance, RDS(ON) Parameter Value Unit VDS 100 V Low Gate Charge, Qg VGS(th)_Typ 3.0 V 100% UIS and Rg Tested ID (@ VGS = 10V) (2) 263 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 1.9 mW Halogen-free and RoHS-compliant Applications Power Management in Telecom., Ind... See More ⇒

8.1. Size:1079K jiejie micro
jvl102e.pdf pdf_icon

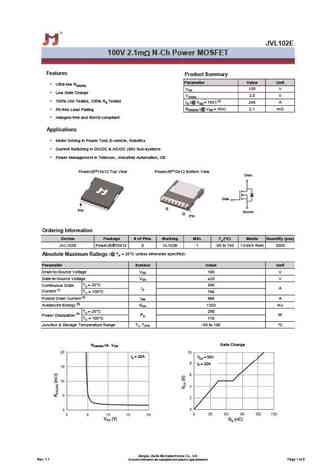

JVL102E 100V 2.1mW N-Ch Power MOSFET Features Product Summary Parameter Value Unit Ultra-low RDS(ON) VDS 100 V Low Gate Charge VGS(th) 3.0 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 246 A RDS(ON) (@ VGS = 10V) 2.1 mW Pb-free Lead Plating Halogen-free and RoHS-compliant Applications Motor Driving in Power Tool, E-vehicle, Robotics Curr... See More ⇒

8.2. Size:557K jiejie micro
jvl102y.pdf pdf_icon

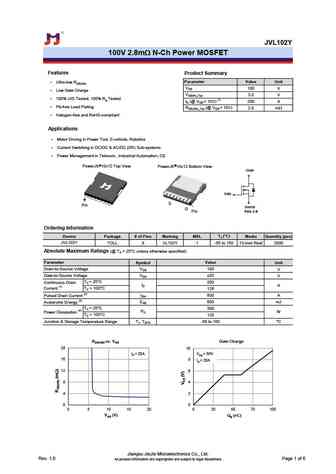

JVL102Y 100V 2.8mW N-Ch Power MOSFET Features Product Summary Parameter Value Unit Ultra-low RDS(ON) Ultra-low RDS(ON) VDS 100 V Low Gate Charge Low Gate Charge VGS(th)_Typ 3.0 V 100% UIS Tested, 100% RggTested 100% UIS Tested, 100% R Tested ID (@ VGS = 10V) (1) 200 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 2.8 Pb-free Lead Plating m... See More ⇒

9.1. Size:788K jiejie micro
jvl101n.pdf pdf_icon

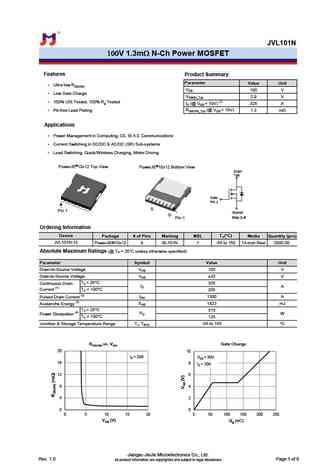

JVL101N 100V 1.3mW N-Ch Power MOSFET Features Product Summary Parameter Value Unit Ultra-low RDS(ON) VDS 100 V Low Gate Charge VGS(th)_Typ 2.9 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 325 A RDS(ON)_Typ (@ VGS = 10V) Pb-free Lead Plating 1.3 mW Applications Power Management in Computing, CE, IE 4.0, Communications Current Switching in DC... See More ⇒
