SLD140N03TB Specs and Replacement
Type Designator: SLD140N03TB
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 91 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 134 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 50 nS
Cossⓘ - Output Capacitance: 450 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0029 Ohm
Package: TO252
SLD140N03TB substitution
- MOSFET ⓘ Cross-Reference Search

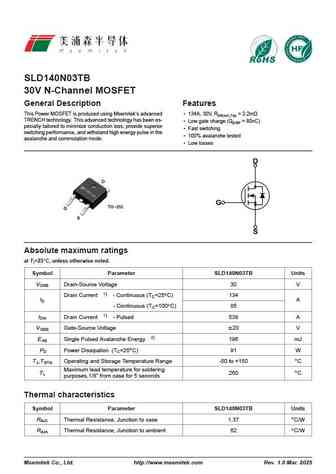

SLD140N03TB datasheet
sld140n03tb.pdf
SLD140N03TB 30V N-Channel MOSFET General Description Features This Power MOSFET is produced using Msemitek s advanced 134A, 30V, RDS(on),Typ = 2.2m TRENCH technology. This advanced technology has been es- Low gate charge (Qg,typ = 80nC) pecially tailored to minimize conduction loss, provide superior Fast switching switching performance, and withstand high energy pulse in... See More ⇒
