SLD60N04TB Specs and Replacement
Type Designator: SLD60N04TB
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 59 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 66 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 30 nS
Cossⓘ - Output Capacitance: 150 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.007 Ohm
Package: TO252
SLD60N04TB substitution
- MOSFET ⓘ Cross-Reference Search

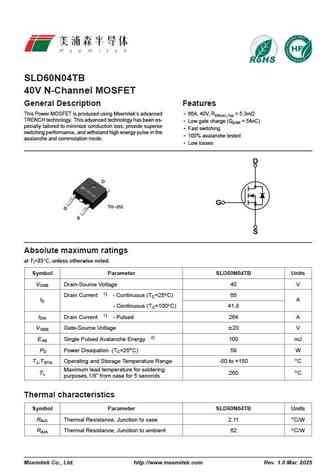

SLD60N04TB datasheet
sld60n04tb.pdf
SLD60N04TB 40V N-Channel MOSFET General Description Features This Power MOSFET is produced using Msemitek s advanced 66A, 40V, RDS(on),Typ = 5.3m TRENCH technology. This advanced technology has been es- Low gate charge (Qg,typ = 54nC) pecially tailored to minimize conduction loss, provide superior Fast switching switching performance, and withstand high energy pulse in t... See More ⇒
