SLD65R1K2E7 MOSFET Datasheet: N-Ch, 650V, 4.9A. Full specification with pinout and replacement list

SLD65R1K2E7 Specs and Replacement

Type Designator: SLD65R1K2E7

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 68 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 4.9 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 39 nS

Cossⓘ - Output Capacitance: 14 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 1.2 Ohm

Package: TO252

SLD65R1K2E7 substitution

- MOSFET ⓘ Cross-Reference Search

SLD65R1K2E7 datasheet

..1. Size:4820K maple semi
sld65r1k2e7.pdf pdf_icon

SLD65R1K2E7 650V N-Channel Multi-EPI Super-junction MOSFET General Description Features This power MOSFET is produced by using Msemitek s ad- 4.9A, 650V, RDS(on),Typ = 1.0 vanced Super-junction MOSFET technology. This advanced Low gate charge (Qg,typ = 8nC) technology has been especially tailored to minimize on-state High ruggedness resistance, provide superior switching... See More ⇒

8.1. Size:5183K maple semi
sld65r380e7c.pdf pdf_icon

SLD65R380E7C 650V N-Channel Multi-EPI Super-junction MOSFET General Description Features This power MOSFET is produced by using Msemitek s ad- 11A, 650V, RDS(on),Typ = 320m vanced Super-junction MOSFET technology. This advanced Low gate charge (Qg,typ = 22nC) technology has been especially tailored to minimize on-state High ruggedness resistance, provide superior switchi... See More ⇒

8.2. Size:5187K maple semi

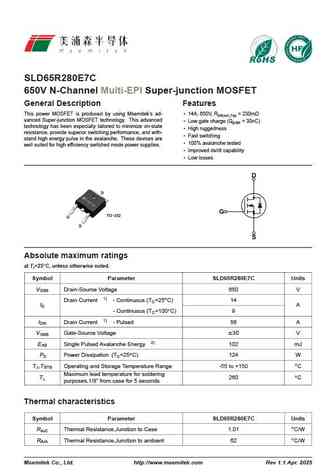

sld65r280e7c.pdf pdf_icon
