SLF80R830GT MOSFET Datasheet: N-Ch, 800V, 7A. Full specification with pinout and replacement list

SLF80R830GT Specs and Replacement

Type Designator: SLF80R830GT

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 57 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 800 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 7 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 33 nS

Cossⓘ - Output Capacitance: 21 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.83 Ohm

Package: TO220F

SLF80R830GT substitution

- MOSFET ⓘ Cross-Reference Search

SLF80R830GT datasheet

..1. Size:2464K maple semi
slf80r830gt.pdf pdf_icon

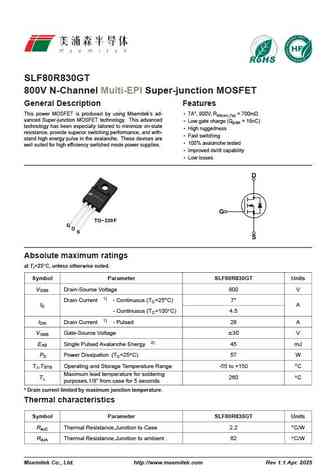

SLF80R830GT 800V N-Channel Multi-EPI Super-junction MOSFET General Description Features This power MOSFET is produced by using Msemitek s ad- 7A*, 800V, RDS(on),Typ = 700m vanced Super-junction MOSFET technology. This advanced Low gate charge (Qg,typ = 16nC) technology has been especially tailored to minimize on-state High ruggedness resistance, provide superior switchin... See More ⇒
