All MOSFET. SLF8N65SV Datasheet



SLF8N65SV Datasheet and Replacement


   Type Designator: SLF8N65SV
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 51 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 650 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
   |Id| ⓘ - Maximum Drain Current: 8 A
   Tj ⓘ - Maximum Junction Temperature: 155 °C
   tr ⓘ - Rise Time: 33 nS
   Cossⓘ - Output Capacitance: 86 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 1.35 Ohm
   Package: TO220F


 SLF8N65SV substitution

   - MOSFET ⓘ Cross-Reference Search

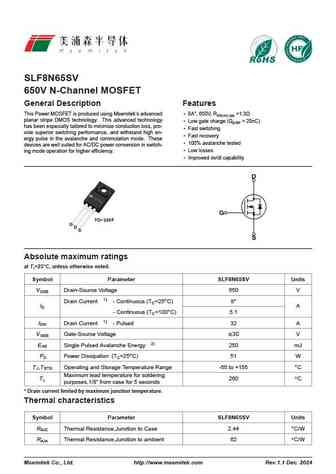

SLF8N65SV Datasheet (PDF)

 ..1. Size:2092K  maple semi
 slf8n65sv.pdf pdf_icon

SLF8N65SV

SLF8N65SV650V N-Channel MOSFETGeneral Description FeaturesThis Power MOSFET is produced using Msemiteks advanced 8A*, 650V, RDS(on),typ =1.3planar stripe DMOS technology. This advanced technology Low gate charge (Qg,typ = 20nC)has been especially tailored to minimize conduction loss, pro- Fast switchingvide superior switching performance, and withstand high en-

 7.1. Size:361K  maple semi
 slp8n65c slf8n65c.pdf pdf_icon

SLF8N65SV

SLP8N65C/SLF8N65C650V N-Channel MOSFETGeneral Description FeaturesThis Power MOSFET is produced using Maple semis - 7.5A, 650V, RDS(on) typ. = 1.2@VGS = 10 Vadvanced planar stripe DMOS technology. - Low gate charge ( typical 29nC)This advanced technology has been especially tailored - High ruggednessto minimize on-state resistance, provide superior switching - Fast switchingp

 8.1. Size:303K  maple semi
 slp8n60c slf8n60c.pdf pdf_icon

SLF8N65SV

SLP8N60C / SLF8N60C600V N-Channel MOSFETGeneral Description FeaturesThis Power MOSFET is produced using Maple semis - 7.5A, 600V, RDS(on) typ. = 1.0@VGS = 10 Vadvanced planar stripe DMOS technology. - Low gate charge ( typical 29nC)This advanced technology has been especially tailored to - High ruggednessminimize on-state resistance, provide superior switching - Fast switching
