Type Designator: SLD90N03TB

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 62.5 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 99 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 5 nS

Cossⓘ - Output Capacitance: 198 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0048 Ohm

Package: TO252

SLD90N03TB substitution

- MOSFET ⓘ Cross-Reference Search



SLD90N03TB datasheet

 ..1. Size:2430K  maple semi
 sld90n03tb.pdf pdf_icon

SLD90N03TB

SLD90N03TB 30V N-Channel MOSFET General Description Features This Power MOSFET is produced using Msemitek s - 99A 1), 30V, RDS(on)typ = 3.6m @VGS = 10 V RDS(on)typ = 6.5m @VGS = 4.5V advanced TRENCH technology. This advanced technology has been especially tailored to minimize - Very Low On-resistance RDS(ON) - Low Crss conduction loss, provide superior switching performance, and -... See More ⇒

 7.1. Size:4807K  maple semi

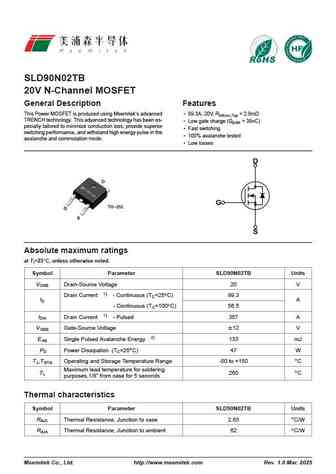

 sld90n02tb.pdf pdf_icon

SLD90N03TB

SLD90N02TB 20V N-Channel MOSFET General Description Features This Power MOSFET is produced using Msemitek s advanced 89.3A, 20V, RDS(on),Typ = 2.8m TRENCH technology. This advanced technology has been es- Low gate charge (Qg,typ = 38nC) pecially tailored to minimize conduction loss, provide superior Fast switching switching performance, and withstand high energy pulse in... See More ⇒
