SLH10RN20T PDF and Equivalents Search



SLH10RN20T Specs and Replacement

Type Designator: SLH10RN20T

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 481 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 200 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 142 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 33 nS

Cossⓘ - Output Capacitance: 880 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.01 Ohm

Package: TO247

SLH10RN20T substitution

- MOSFET ⓘ Cross-Reference Search

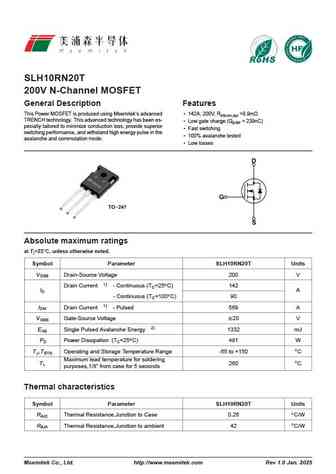

SLH10RN20T datasheet

 ..1. Size:6291K  maple semi
 slh10rn20t.pdf pdf_icon

SLH10RN20T

SLH10RN20T 200V N-Channel MOSFET General Description Features This Power MOSFET is produced using Msemitek s advanced 142A, 200V, RDS(on),typ =8.9m TRENCH technology. This advanced technology has been es- Low gate charge (Qg,typ = 239nC) pecially tailored to minimize conduction loss, provide superior Fast switching switching performance, and withstand high energy pulse i... See More ⇒
