SLI13N50C PDF and Equivalents Search



SLI13N50C Specs and Replacement

Type Designator: SLI13N50C

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 184 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 500 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 13 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 100 nS

Cossⓘ - Output Capacitance: 200 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.48 Ohm

Package: TO262

SLI13N50C substitution

- MOSFET ⓘ Cross-Reference Search

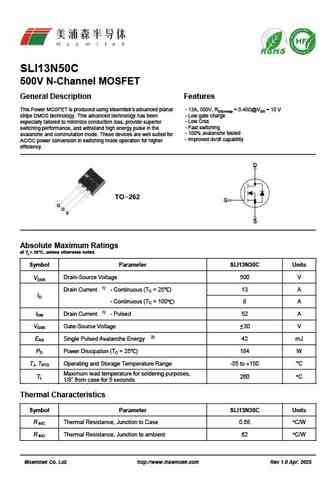

SLI13N50C datasheet

 ..1. Size:1533K  maple semi
 sli13n50c.pdf pdf_icon

SLI13N50C

SLI13N50C 500V N-Channel MOSFET General Description Features This Power MOSFET is produced using Msemitek s advanced planar - 13A, 500V, RDS(on)typ = 0.48 @VGS = 10 V stripe DMOS technology. This advanced technology has been - Low gate charge especially tailored to minimize conduction loss, provide superior - Low Crss - Fast switching switching performance, and withstand high ener... See More ⇒
