MPG08N68P PDF and Equivalents Search



MPG08N68P Specs and Replacement

Type Designator: MPG08N68P

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 125 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 68 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 100 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 95 nS

Cossⓘ - Output Capacitance: 440 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0075 Ohm

Package: TO220

MPG08N68P substitution

- MOSFET ⓘ Cross-Reference Search



MPG08N68P datasheet

 ..1. Size:612K  cn minos
 mpg08n68p mpg08n68s.pdf pdf_icon

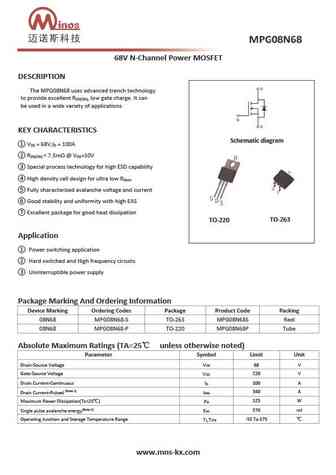

MPG08N68P

68V N-Channel Power MOSFET DESCRIPTION The MPG08N68 uses advanced trench technology to provide excellent R , low gate charge. It can DS(ON) be used in a wide variety of applications. KEY CHARACTERISTICS Schematic diagram V = 68V,I = 100A DS D R ... See More ⇒

 ..2. Size:612K  cn minos
 mpg08n68s mpg08n68p.pdf pdf_icon

MPG08N68P

68V N-Channel Power MOSFET DESCRIPTION The MPG08N68 uses advanced trench technology to provide excellent R , low gate charge. It can DS(ON) be used in a wide variety of applications. KEY CHARACTERISTICS Schematic diagram V = 68V,I = 100A DS D R ... See More ⇒
