All MOSFET. MDT15P04D Datasheet



MDT15P04D Datasheet and Replacement


   Type Designator: MDT15P04D
   Type of Transistor: MOSFET
   Type of Control Channel: P -Channel
   Pd ⓘ - Maximum Power Dissipation: 50 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 40 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 15 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C
   tr ⓘ - Rise Time: 4 nS
   Cossⓘ - Output Capacitance: 85 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.035 Ohm
   Package: TO252


 MDT15P04D substitution

   - MOSFET ⓘ Cross-Reference Search

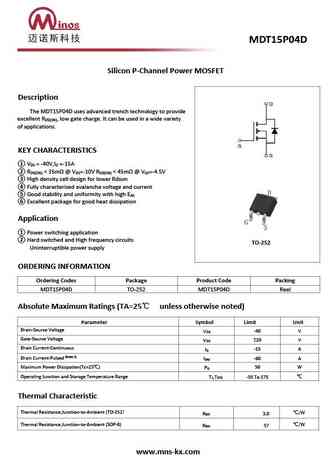

MDT15P04D Datasheet (PDF)

 ..1. Size:766K  cn minos
 mdt15p04d.pdf pdf_icon

MDT15P04D

Silicon P-Channel Power MOSFETDescriptionThe MDT15P04D uses advanced trench technology to provideexcellent R , low gate charge. It can be used in a wide varietyDS(ON)of applications.KEY CHARACTERISTICS V = -40V,I =-15ADS D R
