AP70N03DF Datasheet. Specs and Replacement

Type Designator: AP70N03DF  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 59 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 70 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 15 nS

Cossⓘ - Output Capacitance: 267 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0055 Ohm

Package: PDFN3X3-8L

  📄📄 Copy

AP70N03DF substitution

- MOSFET ⓘ Cross-Reference Search



AP70N03DF datasheet

 ..1. Size:4048K  cn apm

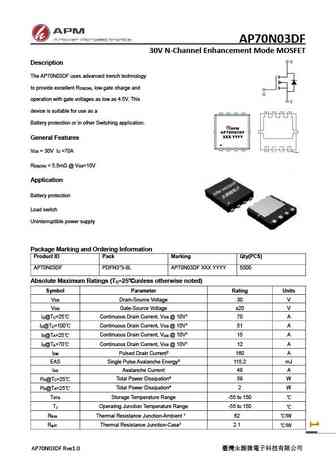

 ap70n03df.pdf pdf_icon

AP70N03DF

AP70N03DF 30V N-Channel Enhancement Mode MOSFET Description The AP70N03DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =70A DS D R ... See More ⇒
