AP90N08NF Datasheet. Specs and Replacement

Type Designator: AP90N08NF  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 180 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 85 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 95 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 38 nS

Cossⓘ - Output Capacitance: 546 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0052 Ohm

Package: PDFN5X6-8L

  📄📄 Copy

AP90N08NF substitution

- MOSFET ⓘ Cross-Reference Search



AP90N08NF datasheet

 ..1. Size:1744K  cn apm
 ap90n08nf.pdf pdf_icon

AP90N08NF

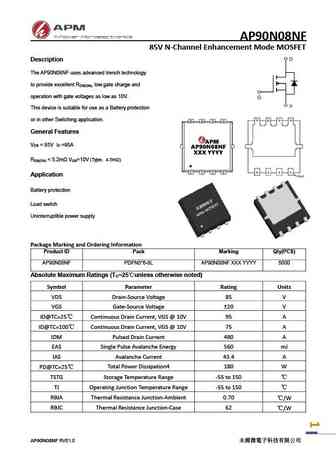

AP90N08NF 85V N-Channel Enhancement Mode MOSFET Description The AP90N08NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 10V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 85V I =95A DS D R ... See More ⇒
