AP100N03Y Datasheet. Specs and Replacement

Type Designator: AP100N03Y  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 46 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 100 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 14.5 nS

Cossⓘ - Output Capacitance: 245 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0065 Ohm

Package: TO251

  📄📄 Copy

AP100N03Y substitution

- MOSFET ⓘ Cross-Reference Search



AP100N03Y datasheet

 ..1. Size:1322K  cn apm

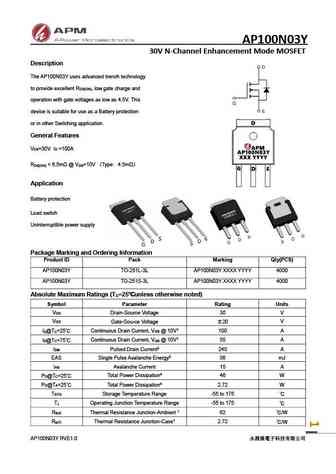

 ap100n03y.pdf pdf_icon

AP100N03Y

AP100N03Y 30V N-Channel Enhancement Mode MOSFET Description The AP100N03Y uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V =30V I =100A DS D R ... See More ⇒

 6.1. Size:1583K  cn apm

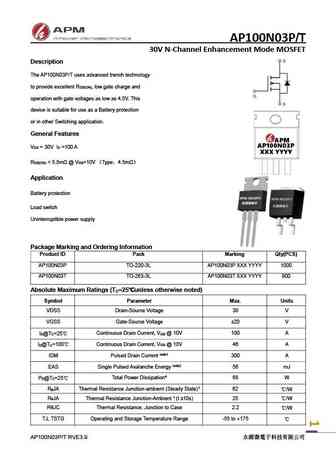

 ap100n03p ap100n03t.pdf pdf_icon

AP100N03Y

AP100N03P/T 30V N-Channel Enhancement Mode MOSFET Description The AP100N03P/T uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =100 A DS D R ... See More ⇒

 6.2. Size:1377K  cn apm
 ap100n03ad.pdf pdf_icon

AP100N03Y

AP100N03AD 30V N-Channel Enhancement Mode MOSFET Description The AP100N03AD uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V =30V I =100A DS D R ... See More ⇒

 6.3. Size:1663K  cn apm

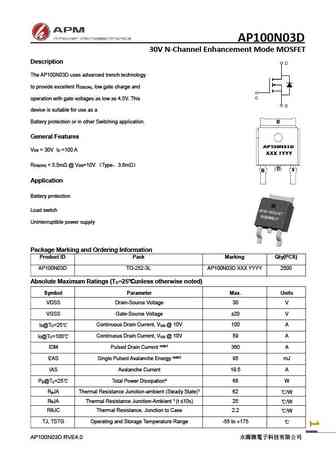

 ap100n03d.pdf pdf_icon

AP100N03Y

AP100N03D 30V N-Channel Enhancement Mode MOSFET Description The AP100N03D uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =100 A DS D R ... See More ⇒
