AP18N20Y Datasheet and Replacement


   Type Designator: AP18N20Y
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 104 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 200 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 18 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 45 nS
   Cossⓘ - Output Capacitance: 180 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.15 Ohm
   Package: TO251


 AP18N20Y substitution

   - MOSFET ⓘ Cross-Reference Search



AP18N20Y Datasheet (PDF)

 ..1. Size:714K  cn apm
 ap18n20d ap18n20y.pdf pdf_icon

AP18N20Y

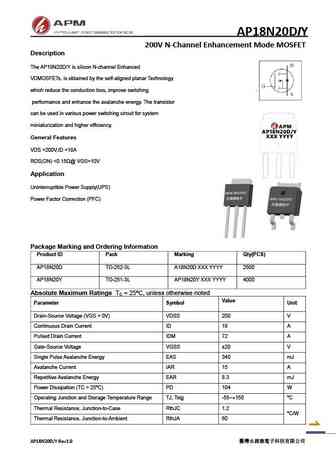

AP18N20DIY 200V N-Channel Enhancement Mode MOSFET Description The AP18N20D/Y is silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.

 7.1. Size:57K  ape
 ap18n20ags-hf.pdf pdf_icon

AP18N20Y

AP18N20AGS-HFHalogen-Free ProductAdvanced Power N-CHANNEL ENHANCEMENT MODEElectronics Corp. POWER MOSFETD Low Gate Charge BVDSS 200V Simple Drive Requirement RDS(ON) 170m Fast Switching Characteristic ID 18AG RoHS Compliant & Halogen-FreeSDescriptionAdvanced Power MOSFETs from APEC provide thedesigner with the best combination of fast switching,Grugge

 7.2. Size:99K  ape
 ap18n20gh-hf ap18n20gj-hf.pdf pdf_icon

AP18N20Y

AP18N20GH/J-HFHalogen-Free ProductAdvanced Power N-CHANNEL ENHANCEMENT MODEElectronics Corp. POWER MOSFET Simple Drive Requirement BVDSS 200VD Low On-resistance RDS(ON) 170m Fast Switching Characteristics ID 18A RoHS Compliant & Halogen-Free GSDescriptionAdvanced Power MOSFETs from APEC provide theGdesigner with the best combination of fast switching, D

 7.3. Size:172K  ape
 ap18n20gs.pdf pdf_icon

AP18N20Y

AP18N20GS/P-HFHalogen-Free ProductAdvanced Power N-CHANNEL ENHANCEMENT MODEElectronics Corp. POWER MOSFETD Low Gate Charge BVDSS 200V Simple Drive Requirement RDS(ON) 170m Fast Switching Characteristic ID 18AG RoHS Compliant & Halogen-FreeSDescriptionAP18N20 series are from Advanced Power innovated design andsilicon process technology to achieve the lowes
