AP30N06P Datasheet. Specs and Replacement

Type Designator: AP30N06P  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 31.3 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 30 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 16.6 nS

Cossⓘ - Output Capacitance: 65 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.036 Ohm

Package: TO220

  📄📄 Copy

AP30N06P substitution

- MOSFET ⓘ Cross-Reference Search



AP30N06P datasheet

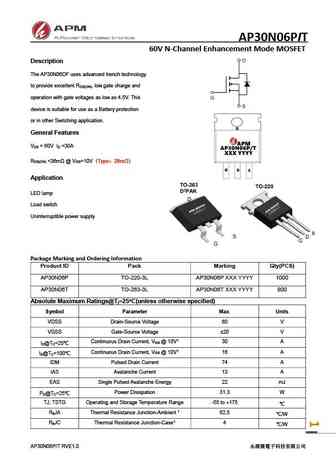

 ..1. Size:1645K  cn apm
 ap30n06p ap30n06t.pdf pdf_icon

AP30N06P

AP30N06PIT 60V N-Channel Enhancement Mode MOSFET Description The AP30N06DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =30A DS D R ... See More ⇒

 7.1. Size:1427K  cn apm
 ap30n06df.pdf pdf_icon

AP30N06P

AP30N06DF 60V N-Channel Enhancement Mode MOSFET Description The AP30N06DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =30A DS D R ... See More ⇒

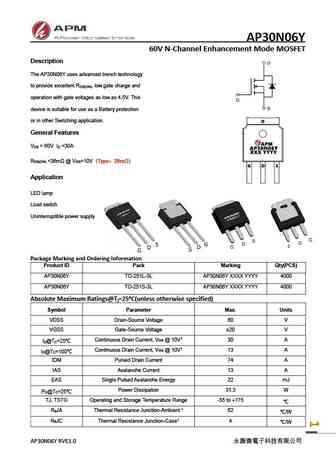

 7.2. Size:1476K  cn apm
 ap30n06y.pdf pdf_icon

AP30N06P

AP30N06Y 60V N-Channel Enhancement Mode MOSFET Description The AP30N06Y uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =30A DS D R ... See More ⇒

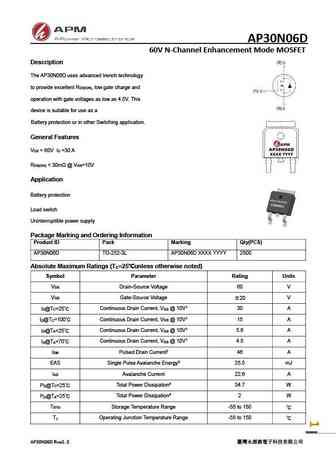

 7.3. Size:1207K  cn apm
