AP80N10P Specs and Replacement
Type Designator: AP80N10P
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ
- Maximum Power Dissipation: 107 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 80 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 5.2 nS
Cossⓘ -
Output Capacitance: 321.7 pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.012 Ohm
Package: TO220
- MOSFET ⓘ Cross-Reference Search
AP80N10P datasheet
..1. Size:1599K cn apm
ap80n10p ap80n10t.pdf

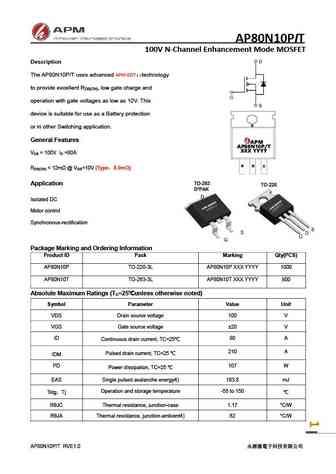

AP80N10PIT 100V N-Channel Enhancement Mode MOSFET Description The AP80N10P/T uses advanced APM-SGT technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 10V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 100V I =80A DS D R ... See More ⇒
