APG100N10D Specs and Replacement
Type Designator: APG100N10D
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 100 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 100 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 6.5 nS
Cossⓘ - Output Capacitance: 605 pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.008 Ohm
Package: TO252
APG100N10D substitution
- MOSFET ⓘ Cross-Reference Search

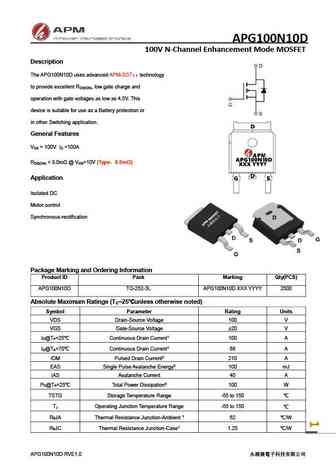

APG100N10D datasheet
apg100n10d.pdf
APG100N10D 100V N-Channel Enhancement Mode MOSFET Description The APG100N10D uses advanced APM-SGT technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 100V I =100A DS D R ... See More ⇒
