All MOSFET. AP15N10D-L Datasheet



AP15N10D-L Datasheet and Replacement


   Type Designator: AP15N10D-L
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 20.8 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 14.1 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 5 nS
   Cossⓘ - Output Capacitance: 40 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.105 Ohm
   Package: TO252


 AP15N10D-L substitution

   - MOSFET ⓘ Cross-Reference Search



AP15N10D-L Datasheet (PDF)

 ..1. Size:2129K  cn apm
 ap15n10d-l.pdf pdf_icon

AP15N10D-L

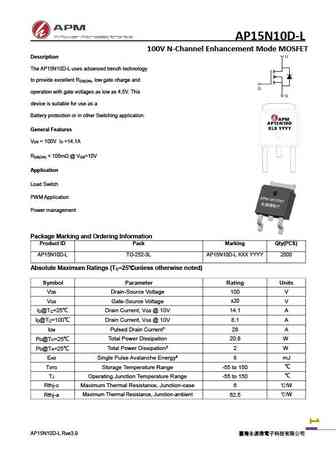

AP15N10D-L 100V N-Channel Enhancement Mode MOSFET Description The AP15N10D-L uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 100V I =14.1A DS DR

 6.1. Size:1596K  cn apm
 ap15n10d.pdf pdf_icon

AP15N10D-L

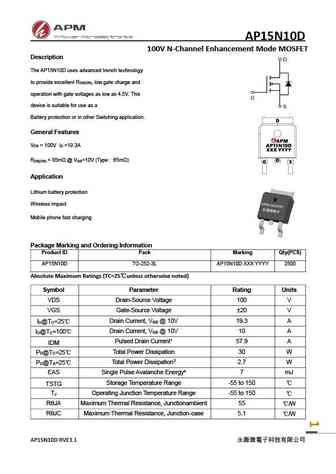

AP15N10D 100V N-Channel Enhancement Mode MOSFET Description The AP15N10D uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 100V I =19.3A DS DR

 7.1. Size:6508K  allpower
 ap15n10.pdf pdf_icon

AP15N10D-L

AP15N10DATA SHEETDATA SHEET N-Channel Enhancement Mode Power MOSFET 100V N-CHANNEL ENHANCEMENT MODE POWER MOSFET Features Application 100V, 14.6A Synchronous buck converter applications. R =100m (max.) @ V = 10V, I = 5A DS(ON) GS D Super Low Gate Charge Excellent CdV/dt effect decline Advanced high cell density Trench technology RoHS Complia

 7.2. Size:1038K  cn apm
 ap15n10s.pdf pdf_icon

AP15N10D-L

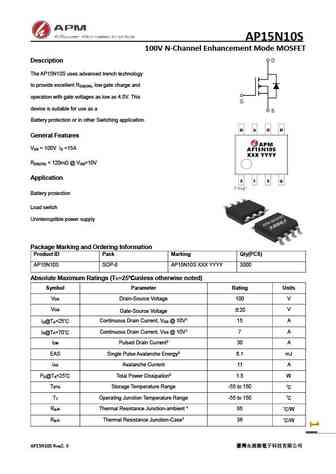

AP15N10S 100V N-Channel Enhancement Mode MOSFET Description The AP15N10S uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 100V I =15A DS DR
