AP2307MI Specs and Replacement

Type Designator: AP2307MI

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 12 V

|Id| ⓘ - Maximum Drain Current: 7.1 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 59 nS

Cossⓘ - Output Capacitance: 220 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.035 Ohm

Package: SOT23

AP2307MI substitution

- MOSFET ⓘ Cross-Reference Search



AP2307MI datasheet

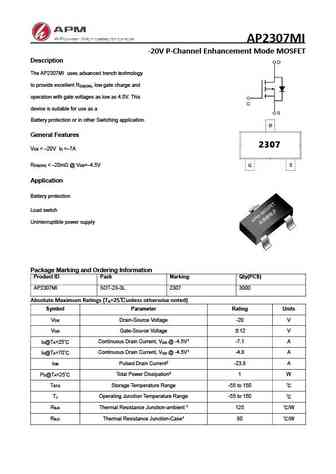

 ..1. Size:1505K  cn apm
 ap2307mi.pdf pdf_icon

AP2307MI

AP2307MI -20V P-Channel Enhancement Mode MOSFET Description The AP2307MI uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -20V I =-7A DS D R ... See More ⇒

 8.1. Size:64K  ape
 ap2307gn.pdf pdf_icon

AP2307MI

AP2307GN RoHS-compliant Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS -16V Small Package Outline RDS(ON) 60m D Surface Mount Device ID - 4A S SOT-23 G Description D The Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, low on-resistance and G cost-effe... See More ⇒

 8.2. Size:57K  ape
 ap2307gn-hf.pdf pdf_icon

AP2307MI

AP2307GN-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS -16V Small Package Outline RDS(ON) 60m D Surface Mount Device ID - 4A RoHS Compliant & Halogen-Free S SOT-23 G Description D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, G ... See More ⇒

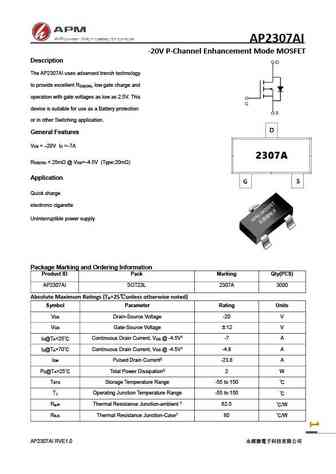

 8.3. Size:1032K  cn apm
 ap2307ai.pdf pdf_icon

AP2307MI

AP2307AI -20V P-Channel Enhancement Mode MOSFET Description The AP2307AI uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -20V I =-7A DS D R ... See More ⇒
