All MOSFET. ATM06P50TC Datasheet



ATM06P50TC Datasheet and Replacement


   Type Designator: ATM06P50TC
   Type of Transistor: MOSFET
   Type of Control Channel: P -Channel
   Pd ⓘ - Maximum Power Dissipation: 113 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 50 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 22 nS
   Cossⓘ - Output Capacitance: 542 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.015 Ohm
   Package: TO263


 ATM06P50TC substitution

   - MOSFET ⓘ Cross-Reference Search



ATM06P50TC Datasheet (PDF)

 ..1. Size:559K  agertech
 atm06p50tc.pdf pdf_icon

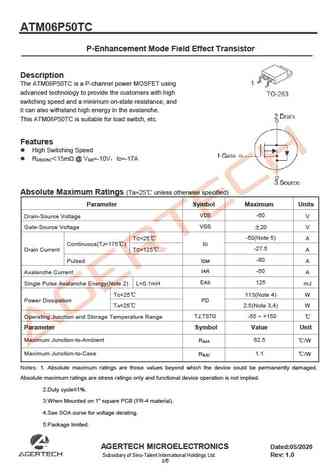

ATM06P50TC

ATM06P50TCP-Enhancement Mode Field Effect TransistorDescriptionThe ATM06P50TC is a P-channel power MOSFET usingadvanced technology to provide the customers with highswitching speed and a minimum on-state resistance, andit can also withstand high energy in the avalanche.This ATM06P50TC is suitable for load switch, etc.Features High Switching Speed R 15m @ V =-10V
