AP5N30D Datasheet. Specs and Replacement

Type Designator: AP5N30D

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 58.7 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 300 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 25 V

|Id| ⓘ - Maximum Drain Current: 5 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 50 nS

Cossⓘ - Output Capacitance: 43 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 1.5 Ohm

Package: TO252

AP5N30D substitution

- MOSFET ⓘ Cross-Reference Search



AP5N30D datasheet

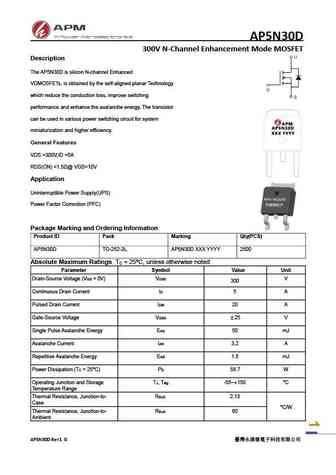

 ..1. Size:1246K  cn apm
 ap5n30d.pdf pdf_icon

AP5N30D

AP5N30D 300V N-Channel Enhancement Mode MOSFET Description The AP5N30D is silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher efficiency. Gener... See More ⇒
