AP2222D Datasheet and Replacement


   Type Designator: AP2222D
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 20 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 20 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 12 V
   |Id| ⓘ - Maximum Drain Current: 50 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 25 nS
   Cossⓘ - Output Capacitance: 182 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0175 Ohm
   Package: TO252

 AP2222D Transistor Equivalent Substitute - MOSFET Cross-Reference Search



AP2222D Datasheet (PDF)

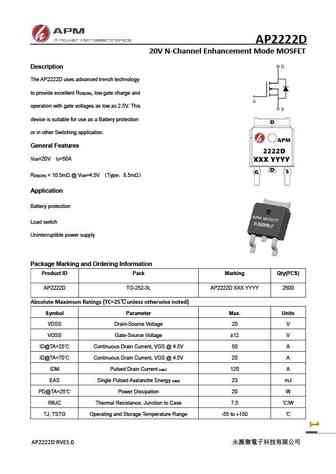

 ..1. Size:1224K  cn apm
 ap2222d.pdf pdf_icon

AP2222D

AP2222D 20V N-Channel Enhancement Mode MOSFET Description The AP2222D uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V =20V I =50A DS DR

Datasheet: AP20P02BF , AP20P02D , AP20P02SI , AP20P03D , AP20P03DF , AP20P04D , AP220N08TLG1 , AP220N10MP , 20N60 , AP25G02NF , AP25G03GD , AP25G04GD , AP25N04D , AP25N04S , AP4406A , AP4406B , AP4407A .

History: AP25G02NF | AP220N08TLG1 | AP25G03GD | AP220N10MP | AP20P02BF
