AP65N04DF Datasheet. Specs and Replacement

Type Designator: AP65N04DF  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 27.8 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 65 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 12 nS

Cossⓘ - Output Capacitance: 192 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.013 Ohm

Package: PDFN3X3-8L

  📄📄 Copy

AP65N04DF substitution

- MOSFET ⓘ Cross-Reference Search



AP65N04DF datasheet

 ..1. Size:1522K  cn apm
 ap65n04df.pdf pdf_icon

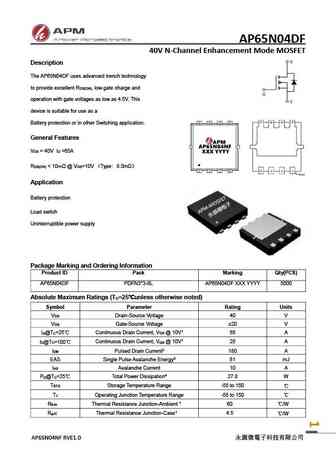

AP65N04DF

AP65N04DF 40V N-Channel Enhancement Mode MOSFET Description The AP65N04DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =65A DS D R ... See More ⇒

 8.1. Size:1817K  cn apm
 ap65n06df.pdf pdf_icon

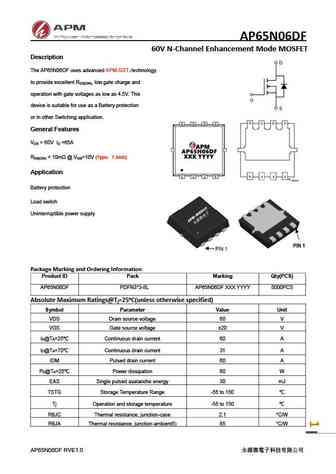

AP65N04DF

AP65N06DF 60V N-Channel Enhancement Mode MOSFET Description The AP65N06DF uses advanced APM-SGT technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =65A DS D R ... See More ⇒

 8.2. Size:1552K  cn apm
 ap65n06nf.pdf pdf_icon

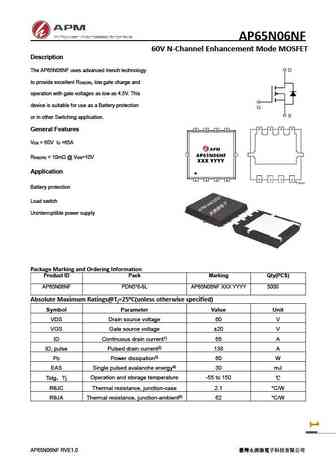

AP65N04DF

AP65N06NF 60V N-Channel Enhancement Mode MOSFET Description The AP65N06NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =65A DS D R ... See More ⇒

 8.3. Size:1844K  cn apm
 ap65n06d.pdf pdf_icon

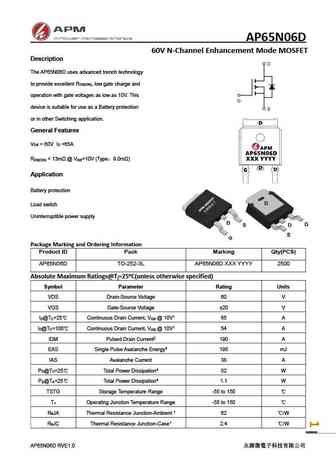

AP65N04DF

AP65N06D 60V N-Channel Enhancement Mode MOSFET Description The AP65N06D uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 10V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =65A DS D R ... See More ⇒
