AGM035N10H Datasheet. Specs and Replacement

Type Designator: AGM035N10H  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 208 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 150 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 33 nS

Cossⓘ - Output Capacitance: 1200 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0041 Ohm

Package: TO263

  📄📄 Copy

AGM035N10H substitution

- MOSFET ⓘ Cross-Reference Search



AGM035N10H datasheet

 ..1. Size:1294K  cn agmsemi
 agm035n10h.pdf pdf_icon

AGM035N10H

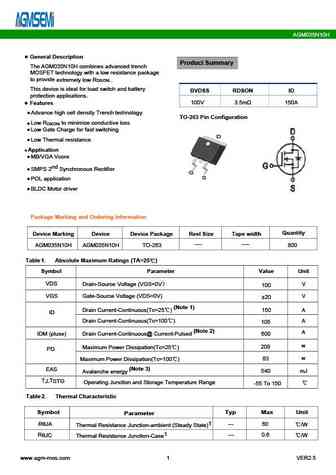

AGM035N10H General Description Product Summary The AGM035N10H combines advanced trench MOSFET technology with a low resistance package to provide extremely low R . DS(ON) This device is ideal switch and battery for load BVDSS RDSON ID protection applications. 100V 3.5m 150A Features Advance high cell density Trench technology TO-263 Pin Configuration Low R to... See More ⇒

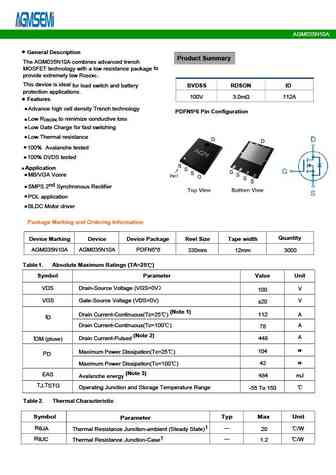

 5.1. Size:1917K  cn agmsemi
 agm035n10a.pdf pdf_icon

AGM035N10H

AGM035N10A Characteristics Curve Typ. output characteristics Typ. drain-source on resistance I =f(V ) R =f(I ) D DS DS(on) D Typ. transfer characteristics Typ. forward transconductance I =f(V ) g =f(I ) D GS fs D www.agm-mos.com 3 VER2.71 AGM035N10A Drain-source on-state resistance Typ. capacitances R =f(T ); I =56A; V =10V C =f(V ); V =0V; f =1MHz DS(on) j D GS DS GS ... See More ⇒

 5.2. Size:1590K  cn agmsemi
 agm035n10c.pdf pdf_icon

AGM035N10H

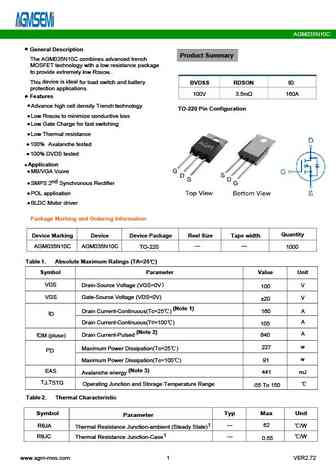

AGM035N10C General Description Product Summary The AGM035N10C combines advanced trench MOSFET technology with a low resistance package to provide extremely low R . DS(ON) device is ideal This for load switch and battery BVDSS RDSON ID protection applications. 100V 3.5m 160A Features Advance high cell density Trench technology TO-220 Pin Configuration Low R to ... See More ⇒

 9.1. Size:1011K  cn agmsemi
 agm03n85h.pdf pdf_icon

AGM035N10H

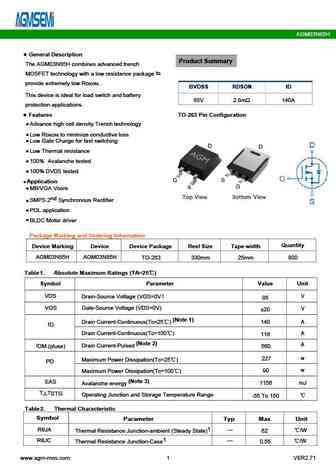

AGM03N85H General Description Product Summary The AGM03N85H combines advanced trench to MOSFET technology with a low resistance package provide extremely low R . DS(ON) BVDSS RDSON ID This device is ideal for load switch and battery 85V 2.8m 140A protection applications. Features TO-263 Pin Configuration Advance high cell density Trench technology Low R to minim... See More ⇒
