AGM12T12D Datasheet PDF and Equivalents Search

 ..1. Size:1372K  cn agmsemi
 agm12t12d.pdf

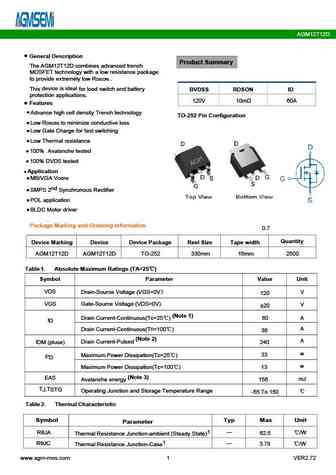

AGM12T12D General Description Product Summary The AGM12T12D combines advanced trench MOSFET technology with a low resistance package to provide extremely low R . DS(ON) device is ideal This for load switch and battery BVDSS RDSON ID protection applications. 120V 10m 60A Features Advance high cell density Trench technology TO-252 Pin Configuration Low R to mini... See More ⇒

 6.1. Size:1623K  cn agmsemi

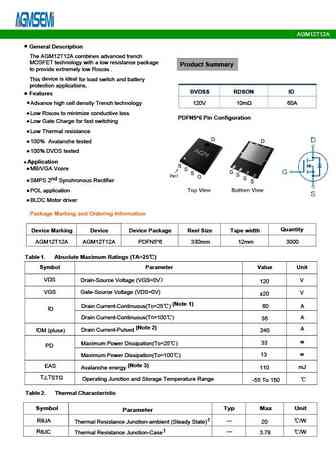

 agm12t12a.pdf

AGM12T12A Table 3. Electrical Characteristics (TJ=25 unless otherwise noted) Symbol Parameter Conditions Min Typ Max Unit On/Off States BV Drain-Source Breakdown Voltage V =0V I =250 A 120 -- -- V GS D DSS Zero Gate Voltage Drain Current V =120V,V =0V -- -- 1 A DS GS I DSS V = 20V,V =0V -- -- nA GS DS IGSS Gate-Body Leakage Current 100 VGS(th) Gate Threshold Voltage... See More ⇒

 6.2. Size:1617K  cn agmsemi
 agm12t12c.pdf

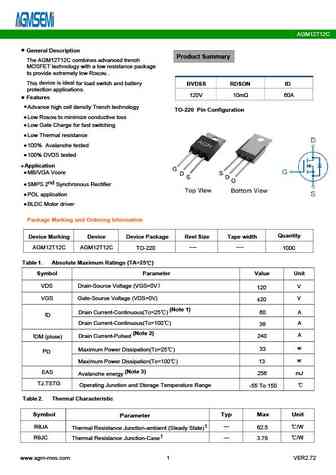

AGM12T12C General Description Product Summary The AGM12T12C combines advanced trench MOSFET technology with a low resistance package to provide extremely low R . DS(ON) device is ideal This for load switch and battery BVDSS RDSON ID protection applications. 120V 10m 60A Features Advance high cell density Trench technology TO-220 Pin Configuration Low R to mini... See More ⇒

 8.1. Size:1921K  cn agmsemi
 agm12t08a.pdf

AGM12T08A Fig 1. Typical Output Characteristics Figure 2. On-Resistance vs. Gate-Source Voltage 20 80 10V 6V ID=20A 4.5V 4V 15 60 125 C 10 40 3.5V 25 C 5 20 Vgs=3V 0 0 2 4 6 8 10 0 0.5 1 1.5 2 VGS (V) VDS (V) Figure 3. On-Resistance vs. Drain Current and Gate Voltage Figure 4. Normalized On-Resistance vs. Junction Temperature 15 2.2 ID=20A 2 12 1.8 VGS=10V VGS... See More ⇒

 8.2. Size:1313K  cn agmsemi
 agm12t05f.pdf

AGM12T05F General Description The AGM12T05F combines advanced trench Product Summary MOSFET technology with a low resistance package toprovide extremely low R . DS(ON) This device is ideal for load switch and battery BVDSS RDSON ID protection applications. Features 120V 5.5m 100A Advance high cell density Trench technology Low R to minimize conductive loss TO-22... See More ⇒

 8.3. Size:1594K  cn agmsemi
 agm12t05c.pdf

AGM12T05C General Description Product Summary The AGM12T05C combines advanced trench MOSFET technology with a low resistance package toprovide extremely low R . DS(ON) This device is ideal for load switch and battery BVDSS RDSON ID protection applications. 120V 5.5m 100A Features Advance high cell density Trench technology TO-220 Pin Configuration Low R to mini... See More ⇒

 8.4. Size:962K  cn agmsemi
 agm12t02ll.pdf

AGM12T02LL Table 3. Electrical Characteristics (TJ=25 unless otherwise noted) Symbol Parameter Conditions Min Typ Max Unit On/Off States BV Drain-Source Breakdown Voltage V =0V I =250 A 120 -- -- V GS D DSS Zero Gate Voltage Drain Current V =120V,V =0V -- -- 1 A DS GS I DSS Gate-Body Leakage Current V = 20V,V =0V -- -- nA GS DS I GSS 100 V Gate Threshold Voltage V =V... See More ⇒

 8.5. Size:1305K  cn agmsemi
 agm12t05a.pdf

AGM12T05A Dimensions PDFN5*6 D2 D MILLIMETER SYMBOL MIN Typ. MAX A 0.900 1.000 1.100 D1 A1 0.254 REF. A2 0 0.05 D 4.824 4.900 4.976 D1 3.910 4.010 4.110 D2 4.924 5.000 5.076 E 5.924 6.000 6.076 E1 3.375 3.475 3.575 E2 5.674 5.750 5.826 b 0.350 0.400 0.450 e 1.270 TYP. b e L 0.534 0.610 0.686 L1 0.424 0.500 0.576 L2 1.800 REF. k 1.190 1.290 1.390 H 0.549 0.625... See More ⇒

 8.6. Size:1911K  cn agmsemi
 agm12t08c.pdf

AGM12T08C General Description Product Summary The AGM12T08C combines advanced trench MOSFET technology with a low resistance package to provide extremely low R . DS(ON) device is ideal This for load switch and battery BVDSS RDSON ID protection applications. 120V 6.7m 78A Features Advance high cell density Trench technology TO-220 Pin Configuration Low R to min... See More ⇒
