All MOSFET. AGM420MAP Datasheet



AGM420MAP Datasheet and Replacement


   Type Designator: AGM420MAP
   Type of Transistor: MOSFET
   Type of Control Channel: NP -Channel
   Pd ⓘ - Maximum Power Dissipation: 25 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 40 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 13.5 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 2.5 nS
   Cossⓘ - Output Capacitance: 82 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.019 Ohm
   Package: PDFN3.3X3.3


 AGM420MAP substitution

   - MOSFET ⓘ Cross-Reference Search

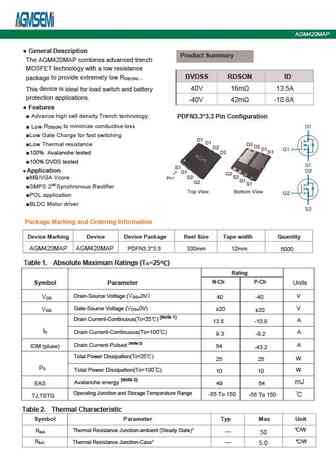

AGM420MAP Datasheet (PDF)

 ..1. Size:1387K  cn agmsemi
 agm420map.pdf pdf_icon

AGM420MAP

AGM420MAPTable 3. N- Channel Electrical Characteristics (TJ=25unless otherwisenoted)Symbol Parameter Conditions Min Typ Max UnitOn/Off StatesBV Drain-Source Breakdown Voltage V =0V I =250A 40 -- -- VGS DDSSZero Gate Voltage Drain Current V =40V,V =0V -- -- 1 ADS GSIDSSGate-Body Leakage Current V =20V,V =0V -- -- nAGS DS100IGSSVGS(th) Gate Threshold V

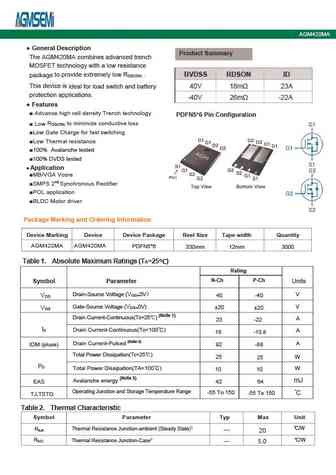

 6.1. Size:1752K  cn agmsemi
 agm420ma.pdf pdf_icon

AGM420MAP

AGM420MAP-Channel Typical CharacteristicsTypical Characteristics -VDS,- Drain -Source Voltage (V) Tj - Junction Temperature (C) Fig1. Typical Output Characteristics Fig2. -VGS(TH) Gate -Source Voltage Vs.Tj -VGS, -Gate -Source Voltage (V) Tj - Junction Temperature (C) Fig3. Typical Transfer Characteristics Fig4. Normalized On-Resistance Vs. Tj -VSD, -Source-Drain Voltage

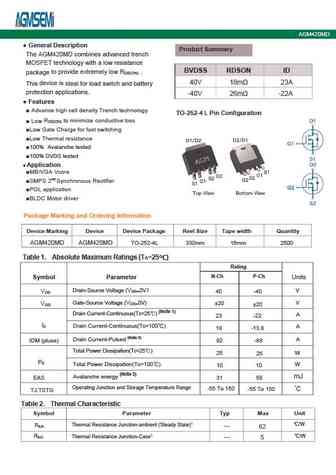

 7.1. Size:1567K  cn agmsemi
 agm420md.pdf pdf_icon

AGM420MAP

AGM420MDP-Channel Typical Characteristics -VDS,- Drain -Source Voltage (V) Tj - Junction Temperature (C) Fig1. Typical Output Characteristics Fig2. -VGS(TH) Gate -Source Voltage Vs.Tj -VGS, -Gate -Source Voltage (V) Tj - Junction Temperature (C) Fig3. Typical Transfer Characteristics Fig4. Normalized On-Resistance Vs. Tj -VSD, -Source-Drain Voltage (V) -VDS, -Drain -Source V

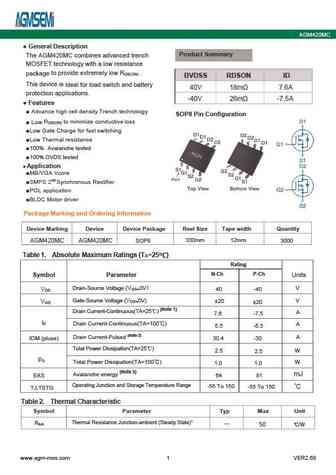

 7.2. Size:1808K  cn agmsemi
 agm420mc.pdf pdf_icon

AGM420MAP

AGM420MC General DescriptionProduct SummaryThe AGM420MC combines advanced trenchMOSFET technology with a low resistanceto provide extremely low R .package DS(ON)BVDSS RDSON IDThis device isideal for load switch and battery40V 18m 7.6Aprotection applications.-40V 26m -7.5A Features Advance high cell density Trench technologySOP8 Pin ConfigurationR to

SHOW MORE

Datasheet: AGM412D , AGM412MAP , AGM412MPA , AGM412S , AGM414MBP , AGM418M , AGM418MBP , AGM420MA , IRLB4132 , AGM420MBA , AGM420MC , AGM420MD , AGM425M , AGM425MA , AGM425MC , , .
