AGM425MA Datasheet. Specs and Replacement
Type Designator: AGM425MA 📄📄
Type of Transistor: MOSFET
Type of Control Channel: NP-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 25 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 23 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 2.2 nS
Cossⓘ - Output Capacitance: 69 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.025 Ohm
Package: PDFN5X6
📄📄 Copy
AGM425MA substitution
- MOSFET ⓘ Cross-Reference Search
AGM425MA datasheet
agm425ma.pdf

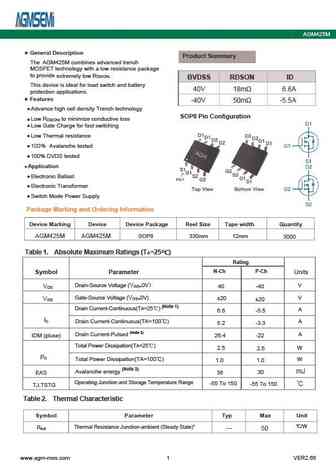

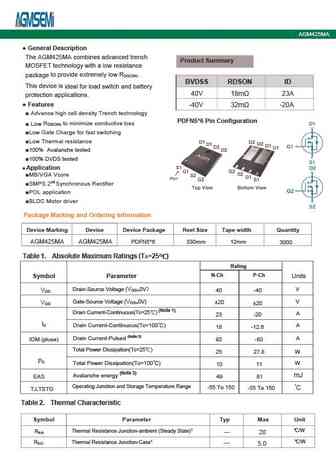

AGM425MA Table 3. N- Channel Electrical Characteristics (TJ=25 unless otherwisenoted) Symbol Parameter Conditions Min Typ Max Unit On/Off States BV Drain-Source Breakdown Voltage V =0V I =250 A 40 -- -- V GS D DSS Zero Gate Voltage Drain Current V =40V,V =0V -- -- 1 A DS GS I DSS Gate-Body Leakage Current V = 20V,V =0V -- -- nA GS DS 100 I GSS VGS(th) Gate Threshold Vo... See More ⇒
agm425md.pdf

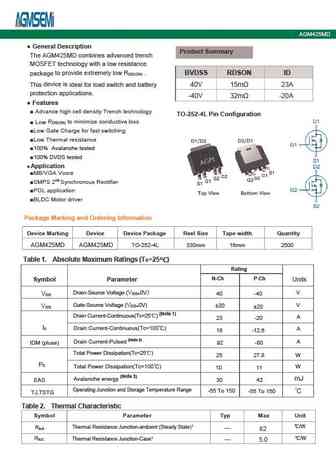

AGM425MD N-Channel Typical Characteristics 40 12 ID=12A VGS=10V 10 35 VGS=7V 8 VGS=5V 30 6 VGS=4.5V 4 VGS=3V 25 2 20 0 2 4 6 8 10 0 0.5 1 1.5 2 VDS Drain-to-Source Voltage (V) VGS (V) Fig.1 Typical Output Characteristics Fig.2 On-Resistance vs. G-S Voltage 10 12 VDS=20V ID=12A 8 8 6 TJ=150 TJ=25 4 4 2 0 0 0.00 0.25 0.50 0.75 1.00 0 4 8 12 16 QG , T... See More ⇒
agm425me.pdf

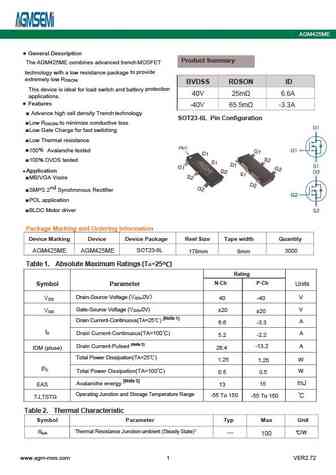

AGM425ME General Description Product Summary The AGM425ME combines advanced trench MOSFET to provide technology with a low resistance package extremely low R DS(ON) BVDSS RDSON ID protection This device is ideal for load switch and battery 40V 25m 6.6A applications. Features -40V 65.5m -3.3A Advance high cell density Trench technology SOT23-6L Pin Configuration ... See More ⇒
agm425mc.pdf

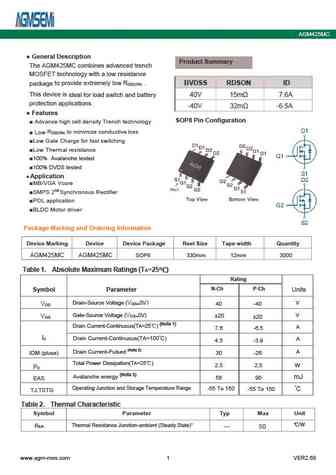

AGM425MC General Description Product Summary The AGM425MC combines advanced trench MOSFET technology with a low resistance to provide extremely low R . BVDSS RDSON ID package DS(ON) This device is ideal for load switch and battery 40V 15m 7.6A protection applications. -40V 32m -6.5A Features SOP8 Pin Configuration Advance high cell density Trench technology R to mi... See More ⇒
