AP4688S Datasheet. Specs and Replacement

Type Designator: AP4688S

Type of Transistor: MOSFET

Type of Control Channel: NP-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 3 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 8(6) A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 3 V

Qg ⓘ - Total Gate Charge: 13(11) nC

tr ⓘ - Rise Time: 3(4) nS

Cossⓘ - Output Capacitance: 80(85) pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.05(0.065) Ohm

Package: SOP8

AP4688S substitution

- MOSFET ⓘ Cross-Reference Search



AP4688S datasheet

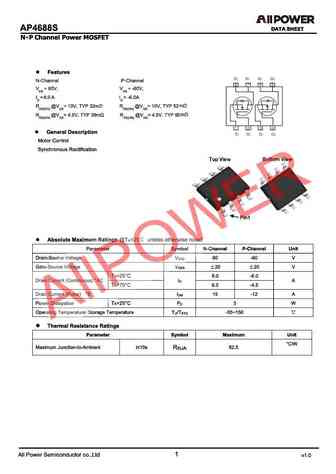

 ..1. Size:2699K  allpower
